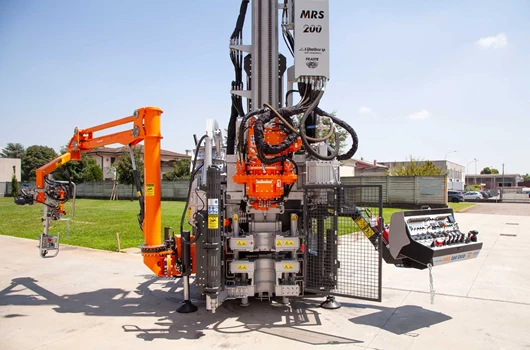

Eijkelkamp MRS 200 Sonic drilling rig (181 kN | 40 k lbf)

Sonic Vibration Oscillator Output Force: 181 kN | 40 k lbf

Drill Head Tilt: Maximum 90 degrees

Pull Up/Down Force in Combination with Sonic: 6000 daN | 13265 lbf

Drill Head Mass: 890 kg | 1962 lbs

Engine: Caterpillar 4 cylinder water cooled, 140 kW | 188 HP

Water Tank: 500 litres | 132 gallon

Fuel Tank: Diesel, 170 litres | 45 gallon

Mast Stroke: 5200/5500 mm | 17’1”/18’0.5”

Maximum Height when Drilling: 7500 mm | 24’7”

Dimensions Folded (L x W x H) approx.: 8850 x 2310 x 2995 mm | 29’ x 7’7” x 9’11”
