Eijkelkamp 12.23 Peristaltic pump - hand operated (1l/min)

Fit for silt loaden water: Yes

Maximum pumping capacity: 1l/min

Maximum sample depth: 9m

Power supply: Manual

Sample diameter: 4mm

Weight: 2kg

Applications

Monitoring well installation

Infiltration research

Water quality research

Monitoring water quality

Anaerobe sampling

Water sampling

Ground water sampling

Description

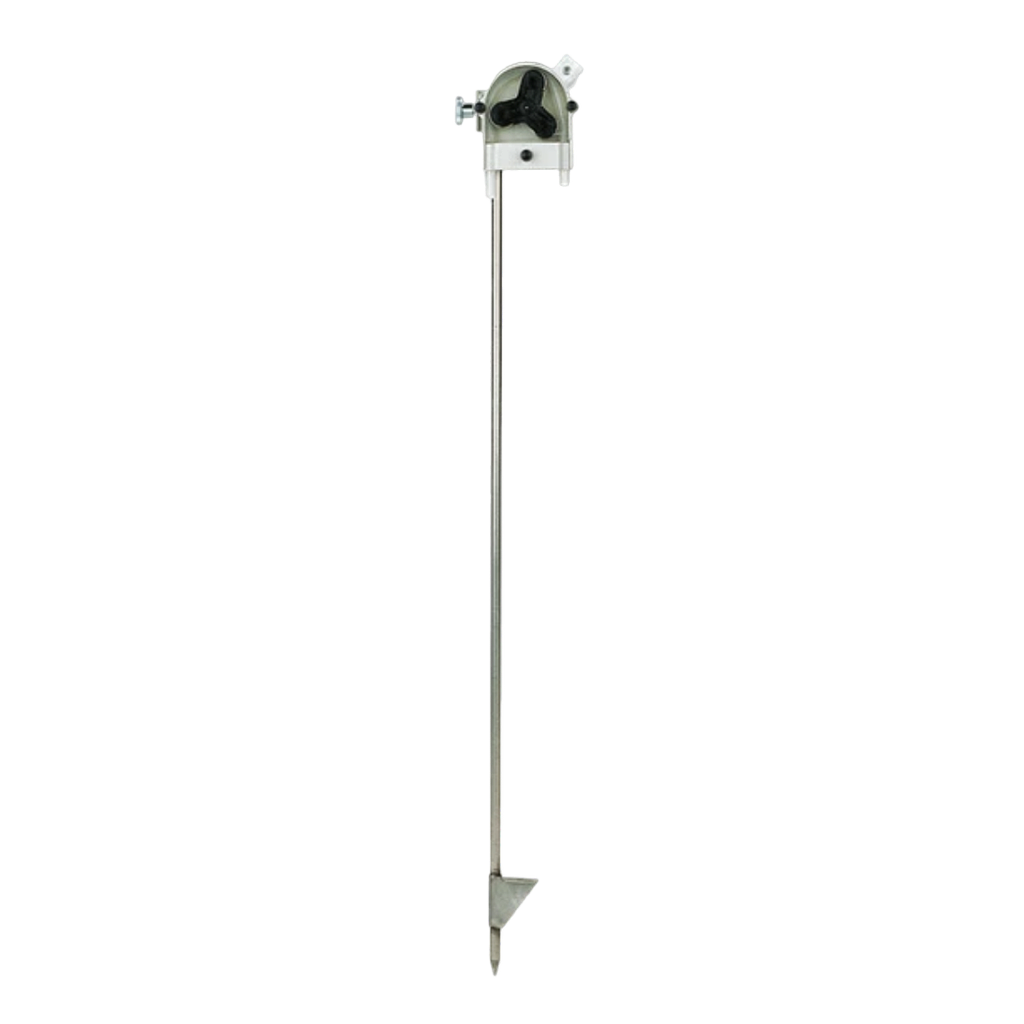

The hand-operated peristaltic pump is a very reliable apparatus that is used for pumping of gasses and fluids. This pump is a simple, but very durable, peristaltic pump with three pressure rollers. The bearings of the drive shaft and the pressure rollers are water resistant.

The pump can deliver a pump pressure of 3 bar, which makes it suitable for use with in-line filters, and an underpressure maximum of 1 bar. It is a self-priming pump. Even when the pump is out of use, the pump tube is completely pressed by at least one roller. Fluid and gas cannot flow back.

Using the hand-operated peristaltic pump, water can be pumped from a depth of up to 9.5 metres. A 6 x 10 millimetres silicon tube is most suitable for groundwater sampling which is often used with 6 x 8 millimetres per tube.

The hand-operated peristaltic pump is fitted with a handle with bearings that operates very light. The stainless-steel monopod stand has been fitted with a press-down rim that allows you to press the stand into the soil easily for support. Please note that the hand-operated peristaltic pump is not suitable for purging.
