Applications:
Geohydrological research
Water quantity research
Monitoring water quantity
Long-term water level monitoring
Groundwater monitoring projects
Specifications:
Range: 10m
Battery life:8-10 years, depending on use
Data storage capacity:48,000
Operating temperature:0℃ - 50℃
Casing material:316L stainless steel
Sample interval:0.5 seconds to 99 hours
Protection class:IP68, 10 years continuously submerged in water at 100m
Package size:9 x 2 x 2 cm
Weight:45 g
Description

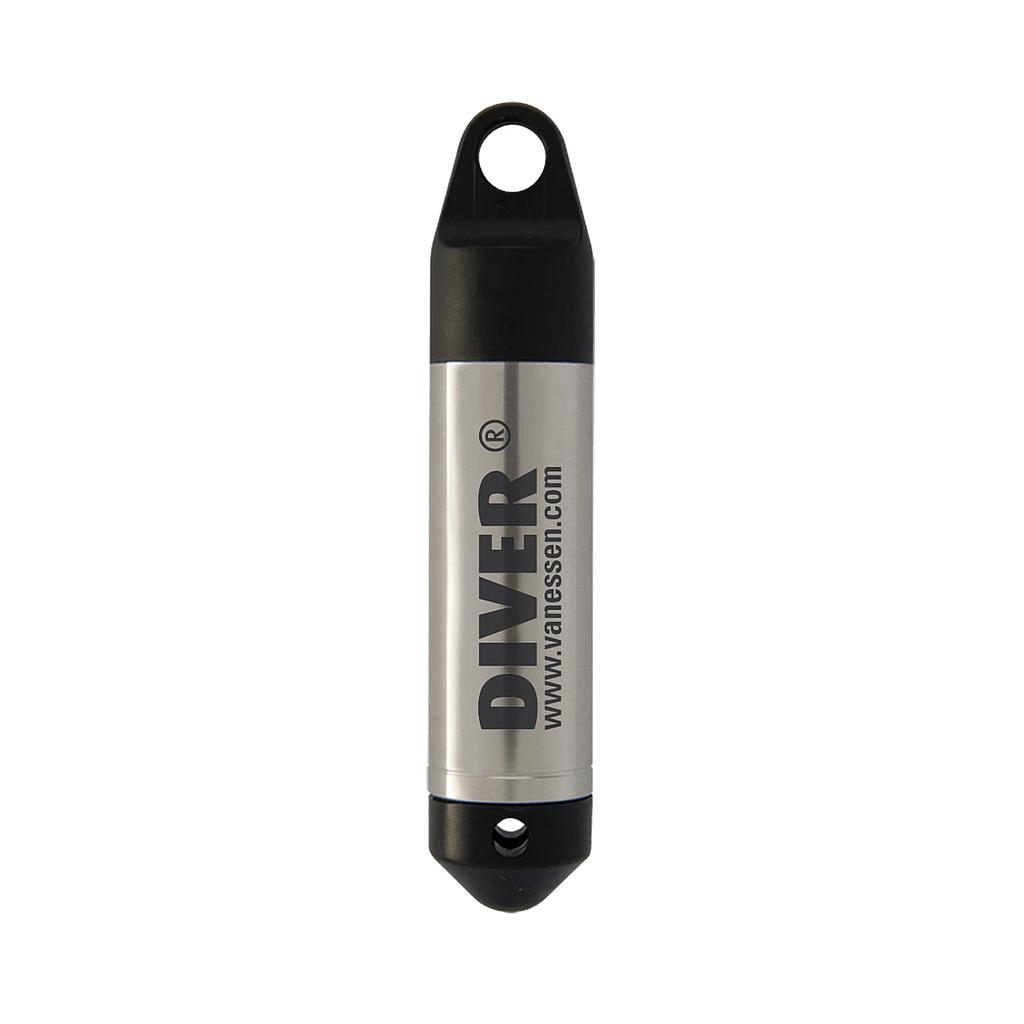

Measuring only 88 mm in length and 18 mm in diameter, the Micro-Diver is the smallest Diver capable of accurately recording groundwater levels, surface water levels and temperature. Suitable for pipes with a diameter of at least 20mm. These instruments are more narrow, and suitable for pumping tests.
The Micro-Diver measures autonomously and is specifically designed for monitoring wells or drive-points too small to accommodate larger dataloggers. In addition to its compact size, the Micro-Diver’s memory capacity can store up to 48,000 measurements per parameter - almost one measurement every ten minutes for an entire year. Connect the diver to a modem to transmit collected data directly from the field to your data centre.
The datalogger is housed in a stainless steel cylindrical casing, with a suspension eye at the top. The suspension eye can be unscrewed and is designed to install the Diver into the monitoring well and protect the optical connector. The electronics, sensors and battery are maintenance-free and installed into the casing. The Diver is not designed to be opened.
Special software is available for the Divers. Download via WeTransfer.
Features
Cost-effective solution for frequent and long-term measuring
Suitable for many applications
Warranty 1 year
Available variations
11.11.02.02 Range 10 metre
11.11.02.04 Range 20 metre
11.11.02.06 Range 50 metre
11.11.02.08 Range 100 metre
Manual
