Eijkelkamp 06.15.SC Penetrologger with GPS - CBR set (10 m, CBR set)

Applications

Geotechnical soil research

Trafficability or load bearing capacity research

Specifications

Battery life time: 2 years

Diameter (D) and/or size (LWH): Sensor D 14 mm

Maximum measuring depth: 10 m

Measuring principles: Conductivity

Measuring range: 10 m

Power supply: Battery

Product material: Stainless steel, PVC, other material

Reading accuracy: 1 cm

Registration type: Manual

Rod or Cable length: 10 m

Rod or cable operated: Cable

Package size: 30 x 25 x 15 cm

Weight: 5.5 kg

Description

The Royal Eijkelkamp penetrologger CBR is very similar to the standard 06.15.SA set. However, in the CBR version it measures, by a static penetration test, directly in CBR values using the standard CBR cone.

The standard California bearing ratio (CBR) is a penetration test for evaluation of the mechanical strength of road subgrades and basecourses. It is the basis for determining the thickness of soil and aggregate layers used in the design of roads and airfields. A soil’s CBR value is an index of its resistance to shearing under a standard load compared to the shearing resistance of a standard material (crushed limestone) subjected to the same load.

Measuring the resistance to penetration of the soil in a large number of measurements is best done with an electronic penetrometer in combination with a data logger, where the data can be saved and processed immediately in the data logger. Royal Eijkelkamp has developed an electronic penetrometer with a built-in data logger for storing and processing a large number of measurement data (1500 measurements). The camouflage coloured rucksack makes it very suitable to carry in the field.

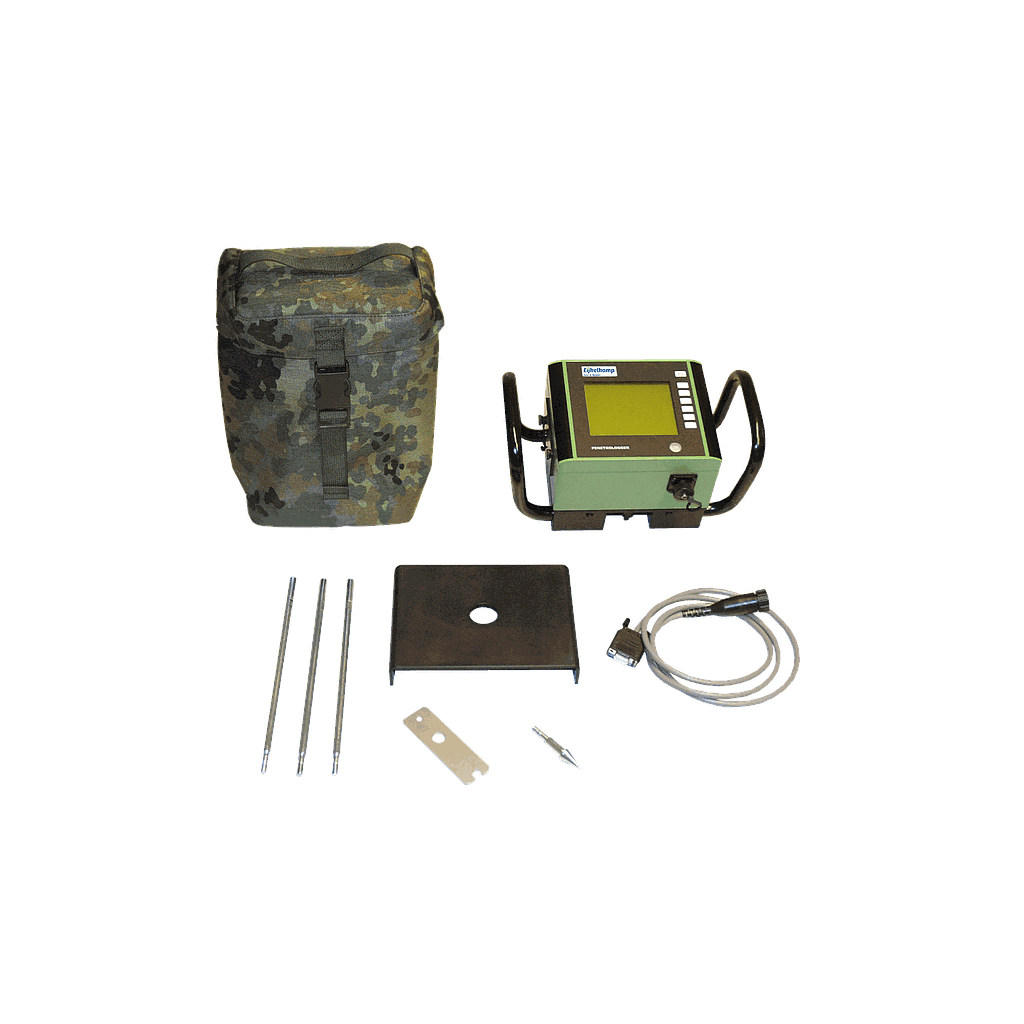

Set contains

Penetrologger CBR

Probing rod (3 parts),

2 pcs Cones CBR 1,3cm2, 30°

Depth reference plate

CBR penetrologger software

RS232 cable rugged + adapter RS323 to USB

Driver software for converter cable

Penetroviewer software, downloadable below

Accessories

4 AA batteries

Camouflage coloured rucksack

Brochure

Manual
