Eijkelkamp 06.06 Hand penetrometer for top layers (0...6000 kPa, IB)

Applications

Soil profile description and classification

Determining the density in top layers, i.e. whether a sports field is playable

Horizontal measurements

Specifications

Angle of cone: 30°

Cone surface range: 0.25, 0.5 cm²

Connection: Screw thread

Maximum force: 1500 @ 0.25 cm² kPa

Maximum measuring depth: 60 cm

Measured parameters: Penetration resistance

Measuring accuracy: < +/- 8%

Measuring range: 0...6000 kPa

Product material: Stainless steel, iron, other material

Reading accuracy: 1%

Registration type: Manual

Package size: 41 x 30 x 9 cm

Weight: 2.68 kg

Description

The Royal Eijkelkamp hand penetrometer is used to determine the penetration resistance of top layers. For instance, if you wish to determine the density in a top layer of a sports field in order to decide whether it is playable. Because of the limited overall length of the device, the hand penetrometer can also be used for horizontal measurement, for instance in the walls of profile pits.

The principle of the hand penetrometer is based on measuring the highest penetration resistance of a cone over a distance of about 10 centimetre. The penetration resistance is measured by means of a compression spring.

The instrument is supplied with a number of cones and compression springs. The combination of a cone and a compression spring is selected based on the expected penetration resistance. If the expected penetration resistance is high, a cone with a small surface is selected and a compression spring with a large maximum force and vice versa.

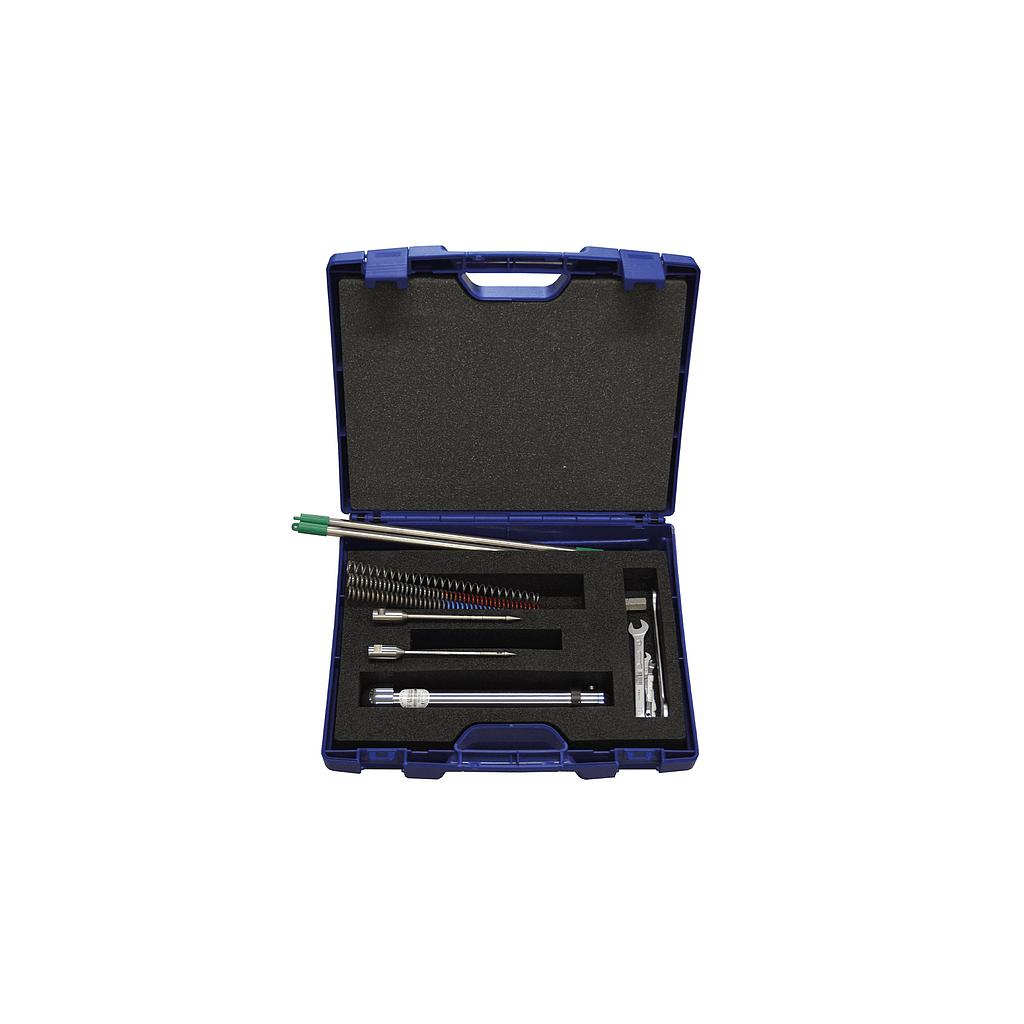

Set contains

Measuring device

Extension rods

Sounding rods

Various cones

Compression springs

Tools

Plastic case

Manual
