Eijkelkamp 06.02 Penetrograph standard set (0...5000 kPa)

Applications

Geotechnical soil research

Trafficability or load bearing capacity research (e.g., construction sites)

Checking artificial compaction of the soil

Research the growing conditions of plants in the soil

Tracing compacted layers in the soil (plow sole)

Specifications

Angle of cone: 60°

Cone surface range: 1, 2, 3.3, 5 cm²

Maximum force: 5000 @ 1 cm² kPa

Maximum measuring depth: 80 cm

Measured parameters: Penetration resistance

Measuring accuracy: < +/- 4%

Measuring range: 0...5000 kPa

Product material: Stainless steel, iron, other material

Reading accuracy: 2%

Registration type: Manual

Package size: 117 x 29 x 23 cm

Weight: 15 kg

Description

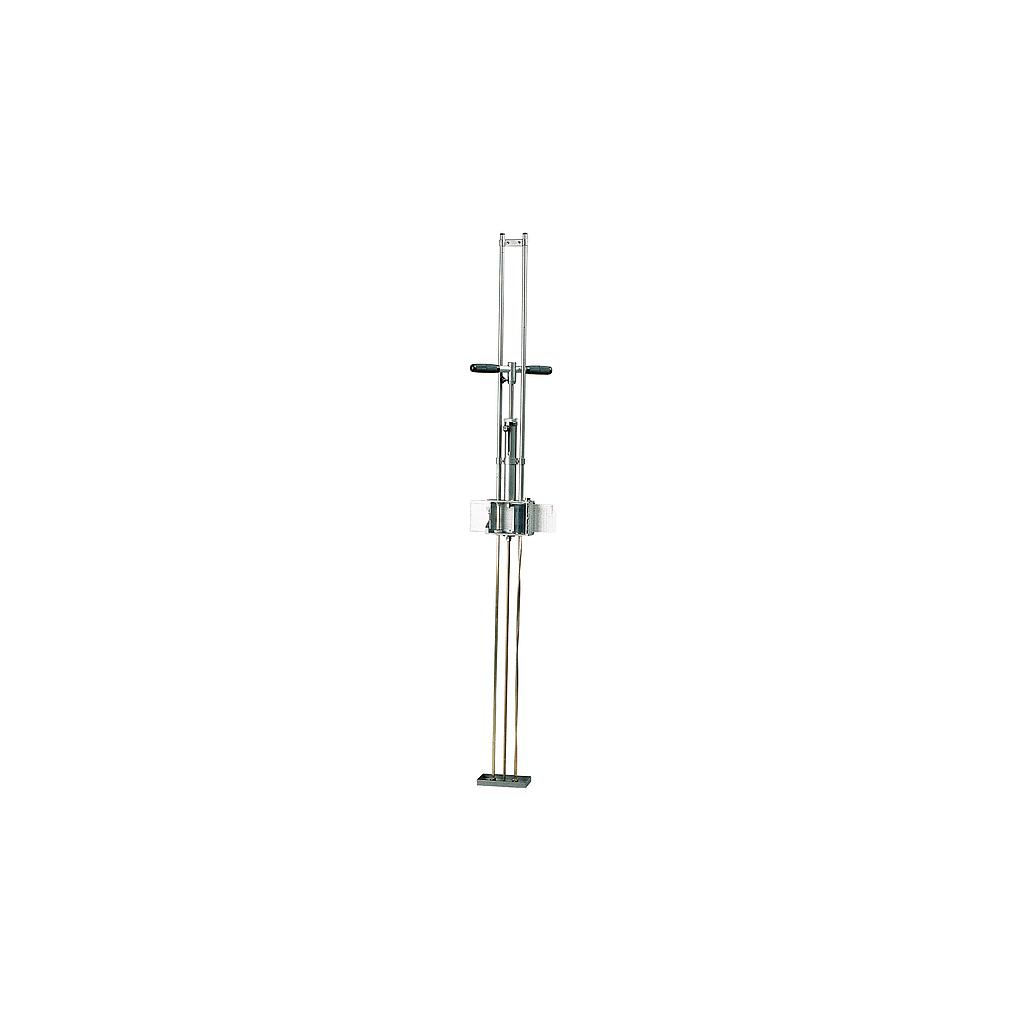

The Penetrograph is a unique devise for determination of the penetration resistance (bearing capacity) and compaction of a soil. This device is unique, because it writes the measured forces in relation to the depth directly as a graph on a chart. The measuring range of the penetrograph goes up to 5000 kN/m2 (= 5 MPa) and the device is suitable for measurements up to a depth of 80 centimetre.

The standard set includes various penetration cones, probe rods and special pens and graph paper for the recorder. The entire set, including spare parts, manual, cone check and tools, is supplied in an aluminium carrying and transport case. Each penetrograph is provided with a quality test report. Our penetrograph is suitable for many applications.

Set contains

Penetrograph

Different cones (4 pieces)

Types of probe rods (2 pieces)

Registration chards

Recording pens

Accessories

Transport case

Manual
