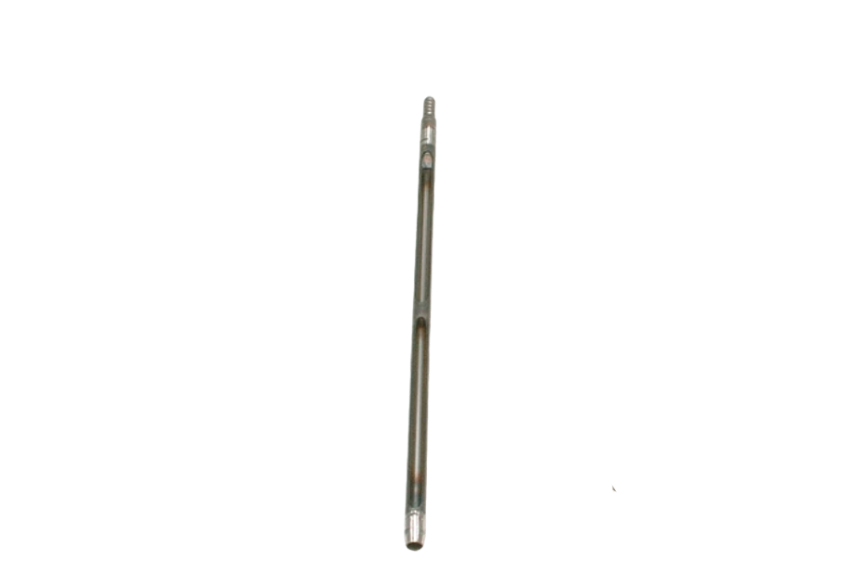

Eijkelkamp 04.19.20.06 Percussion gouge bottom part - 1 m (RD32, combination, 100 cm, Ø 40 mm)

Application:

Royal Eijkelkamp's percussion gouge augers can carry out soil sampling in harder soils or in top layers containing rubble or stones, for example in urban areas.

Specification

The bottom part of the percussion gouge is fitted with an RD32 connection and a hardened cutting head.

RD32 connection

Length: 100 cm

Diameter: Ø 40 mm

Description:

Royal Eijkelkamp's percussion gouge augers can carry out soil sampling in harder soils or in top layers containing rubble or stones, for example in urban areas. With percussion drilling the gouge is driven into the ground with a percussion hammer. The lower part of this percussion gouge is fitted with a hardened cutting head. Samples that have been gouged with a percussion gouge suffer little damage. The lower part of the percussion gouge has a length of 1 metre and has an RD32 connection. With this connection the percussion gouges and extension rods are screwed together using a coupling sleeve. The RD32-connection is used in firmer, drier soils.

The percussion gouge augers lower part is available in several variants:

04.19.20.02 percussion gouge augers, RD32, combination, 100 cm, Ø 100 mm

04.19.20.03 percussion gouge augers, RD32, combination, 100 cm, Ø 75 mm

04.19.20.04 percussion gouge augers, RD32, combination, 100 cm, Ø 60 mm

04.19.20.05 percussion gouge augers, RD32, combination, 100 cm, Ø 50 mm

04.19.20.06 percussion gouge augers, RD32, combination, 100 cm, Ø 40 mm

Features:

Different variants with a length of 1 metre

For harder soils

With hardened cutting head

Practically undisturbed samples
