Eijkelkamp 04.02.SC Two-piece gouge auger set - hard soils, conical screw thread (5 m)

Connection: Conical screw connection

Maximum sample depth: 5m

Product material: Iron, other material

Sample diameter: 16/25/56 mm

Sample specification: Semi-disturbed

Sample length: 50/100 cm

Package size: 150 x 23 x 25 cm

Weight: 24.1 kg

Applications:

Because of the minimal disturbance of the sample, the gouge auger is frequently applied in profile research for:

Soil mapping

Soil suitability reviews

Educational purposes

Root research

Soil sampling for fertilization research

Dry (clay) distribution research

Paleontological research

Environmental soil research

Description:

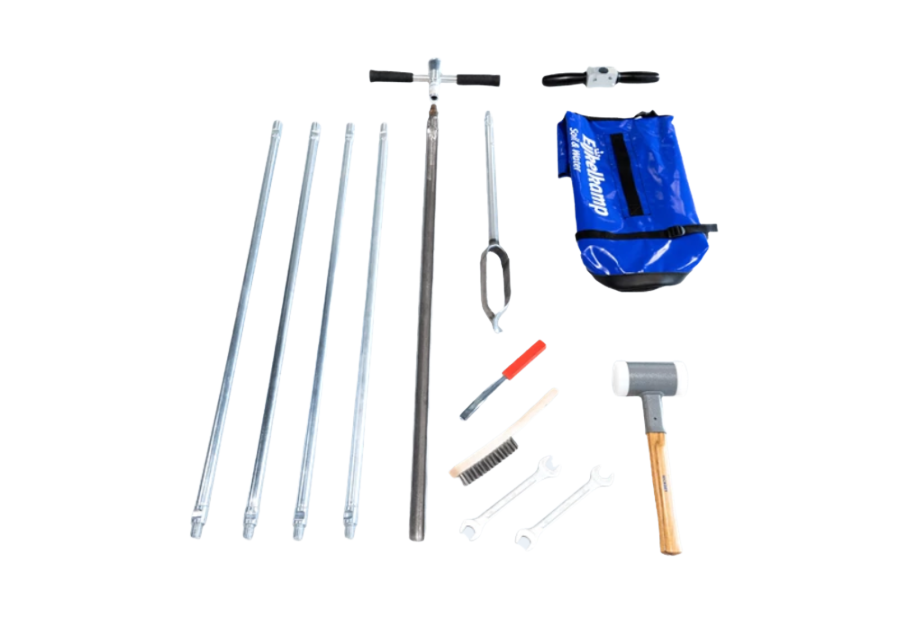

This set contains a gouge auger (heavy design) and extension rods with a conical screw thread connection, hammer with nylon heads (impact absorbing design), push-/pull handle, various accessories and a strong carrying bag for transport in the field. The set is suitable for sampling in hard soils to a depth of 5 metres.

The gouge auger is made out of carbon steel strip which is forged into its half cylindrical form with parallel cutting edges. No lacquering or zinc plating has been added to the strong high-tensile steel. The gouge augers can be extended by coupling an extension rod. This way samplings can be carried out in a very short time and greater depths can be reached. For durability, make sure the set is dry and clean before storing it.

Features:

Up to a depth of 5 metres

Very sturdy high tensile strength steel

Stiff and sturdy conical screw connection

Non contaminating bare steel

One-man operated
