Eijkelkamp 04.02.SA Two-piece gouge auger set - soft soils, bayonet (5 m)

Connection: Bayonet

Maximum sample depth: 5m

Product material: Iron, other material

Sample diameter: 16/25/56 mm

Sample specification: Semi-disturbed

Sample length: 50/100 cm

Sample volume: 100-1770 ml

Package size: 117 x 27 x 23 cm

Weight: 23 kg

Applications:

Because of the minimal disturbance of the sample, the gouge auger is frequently applied in profile research for:

Soil mapping

Soil suitability reviews

Educational purposes

Root research

Soil sampling for fertilization research

Dry (clay) distribution research

Paleontological research

Environmental soil research

Description:

The gouge auger is made out of carbon steel strip, which is forged into its half cylindrical form with parallel cutting edges. Non-contaminating bare steel is used, no lacquers and no zinc plating.

The gouge augers can be extended by coupling an extension rod. This way samplings can be carried out in a very short time and greater depths can be reached. Please note that the set is not suitable for hammering. We recommend storing the set in a clean and dry place if you do not use it for a longer period of time.

Features:

Up to a depth of 5 metres

Three gouge diameters 60-30-20 mm

One-man operated bayonet connection

Very sturdy high tensile strength steel

Non contaminating bare steel, no lacquers no zinc plating

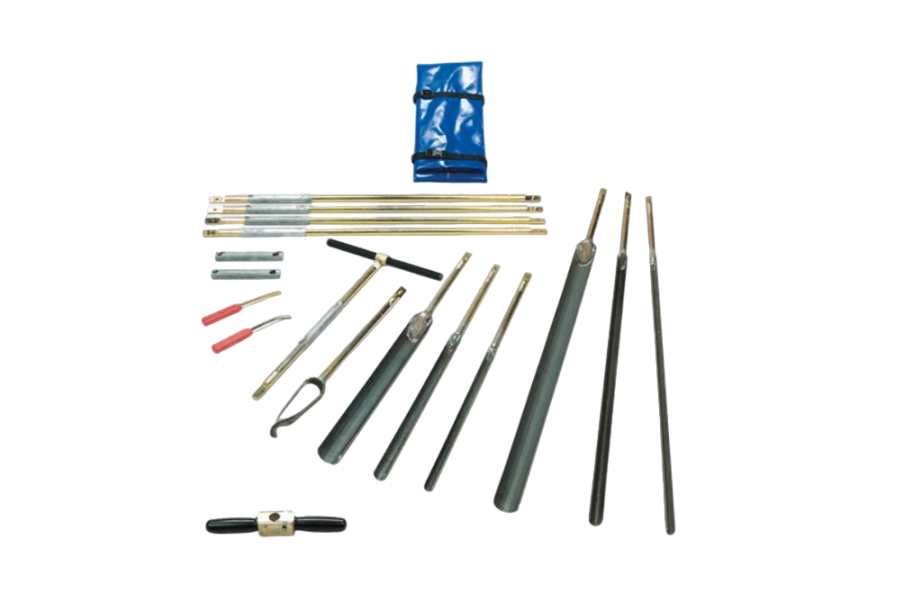

Set contains:

Gouge augers with various lengths and diameters of 60-30-20 cm

An Edelman auger for enlarging the hole and to drill through layers that are too hard for gouging

Extension accessories

Push-/pull handle

Strong carrying bag for transport in the field

Manual

Brochure
