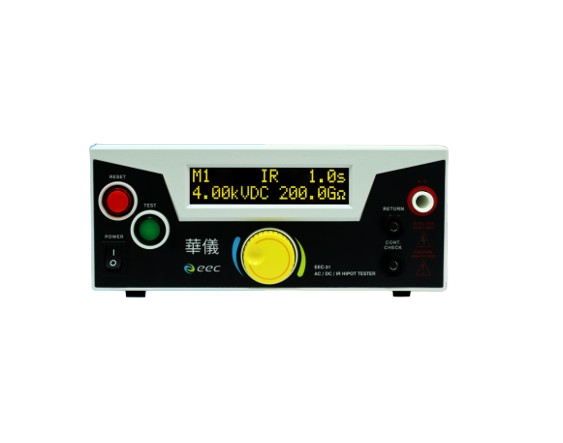

EEC EEC-31 Safety Tester (3kV / 10mAAC, 4kV/5mADC, 4kV/200GΩ)

INPUT

Voltage (AC): 100–120Vac / 200–240Vac ±10%

Fuse: 3.15A / 250Vac

Frequency: 50/60Hz ±5%

AC WITHSTAND VOLTAGE

Output Rating: 3kV / 10mA

Voltage

Range: 0–3.00kV

Resolution: 0.01kV

Accuracy: ± (1.5% of setting 5V)

Current

Hi Limit Range: 0.10–10.00mA

Lo Limit Range: 0.00–10.00mA

Resolution: 0.01mA

Accuracy: ± (2% of setting 2 counts)

Output Frequency

Range: 50Hz / 60Hz

Ramp Up Time

Range: 0.2–60.0s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Dwell Time

Range: 0, 0.2–60.0 (0 = continuous)

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

DC WITHSTAND VOLTAGE

Output Rating: 4kV / 5mA

Voltage

Range: 0–4.00kV

Resolution: 0.01kV

Accuracy: ± (1.5% of setting 5V)

Current

Hi Limit Range: 0.02–5.00mA

Lo Limit Range: 0.00–5.00mA

Resolution: 0.01mA

Accuracy: ± (2% of setting 2 counts)

Ramp Up Time

Range: 0.2–60.0s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Dwell Time

Range: 0, 0.2–60.0 (0 = continuous)

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Discharge Time: < 50ms, < 100ms for capacitor load

Maximum Capacitive Load

0.17µF < 1kV

0.09µF < 2kV

0.07µF < 3kV

0.05µF < 4kV

INSULATION RESISTANCE

Output Rating: 4kV / 200GΩ

Voltage

Range: 0.10–4.00kV

Resolution: 0.01kV

Accuracy: ± (1.5% of setting 5V)

Hi/Lo Limit

Range 1

Range: 1–999MΩ

Resolution: 1MΩ

Accuracy: 0.10–0.49kV ± (7% of setting 2 counts)

Accuracy: ≥0.50kV ± (3% of setting 2 counts)

Range 2

Range: 1000–9999MΩ

Resolution: 1MΩ

Accuracy: 0.10–0.49kV ± (20% of setting 2 counts)

Accuracy: ≥0.50kV ± (5% of setting 2 counts)

Range 3

Range: 10.00–99.99GΩ

Resolution: 0.01GΩ

Accuracy: ± (20% of setting 10 counts)

Range 4

Range: 100.0–200.0GΩ

Resolution: 0.1GΩ

Accuracy: ± (30% of setting 10 counts)

Ramp Up Time

Range: 0.1s or 2s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Dwell Time

Range: 0, 1.0–999.9s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)
