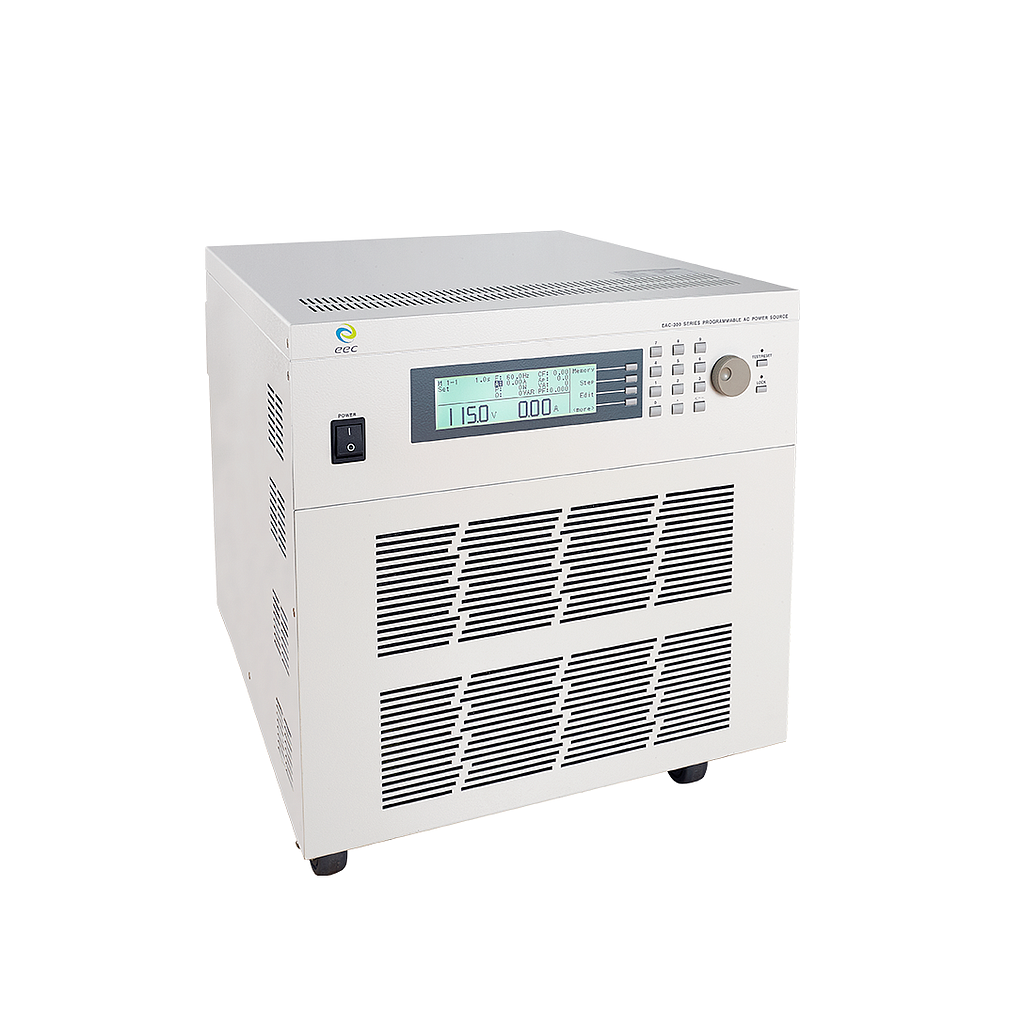

EEC EAC-303 Programmable 1 Phase/3 Phase AC Power Source (3kVA; 0 - 210V: 14.4A)

REPLACE MODEL: Associated Research 430XAC

AC OUTPUT

• Phase: 1Ø, 3Ø

• Power Rating: 1Ø2W: 3kVA; 1Ø3W: 2kVA; 3Ø4W: 3kVA

• Voltage:

Range: 1Ø2W: 0.0 - 300Vac, 150/300V Auto Range

1Ø3W: 0.0 - 300V (phase), 0.0 - 600V (line), 150/300V Auto Range

3Ø4W: 0.0 - 300V (phase), 0.0 - 520V (line), 150/300V Auto Range

Resolution: 0.1V

Accuracy: ±(0.2% of setting + 3 counts)

• Max. Current rms:

1Ø2W: 0 - 150V: 27.6A; 0 - 300V: 13.8A

1Ø3W: 0 - 150V: 9.2A; 0 - 300V: 4.6A

3Ø4W: 0 - 150V: 9.2A; 0 - 300V: 4.6A

• Frequency:

Range: 40 – 1kHz Full Range Adjust

Resolution: 0.1Hz at 40.0 - 99.9 Hz, 1Hz at 100 - 1kHz

Accuracy: ±0.03% of setting

• Total Harmonic Distortion (THD): < 0.3% at 110/220V & 50/60Hz (Resistive Load)

• Inrush Current: 4 times rated Current(r.m.s)

• Crest Factor: 3 times rated Current(r.m.s)

• Line Regulation: ± 0.1V

• Load Regulation: ±(1% of output + 1V) at Resistive Load, < 400μS response time

DC OUTPUT

• Power rating: 3kW

• Voltage

Range: 0 - 210V/0 - 420V Selectable

Resolution: 0.1V

Accuracy: ±(0.2% of setting + 3 counts)

• Max. Current (r.m.s)

0 - 210V: 14.4A

0 - 420V: 7.2A

• Ripple and Noise (r.m.s): Range: L < 700mV; H < 1100mV

• Ripple and Noise (p-p): < 4.0Vp-p

• Line Regulation: ± 0.1V

• Load Regulation: ±(1% of output + 1V) at Resistive Load, < 400μS response time

INPUT

• Phase: 1Ø

• Voltage: 200-240Vac±10%

• Max Current: 23A

• Frequency: 47 - 63Hz

• Power Factor: 0.97

GENERAL

• Interface: Standard USB & RS232, Optional GPIB, Ethernet

• Dimensions (WxHxD, mm): 430 x 400 (487) x 500 (560)

• Weight: 48kg

Datasheet
