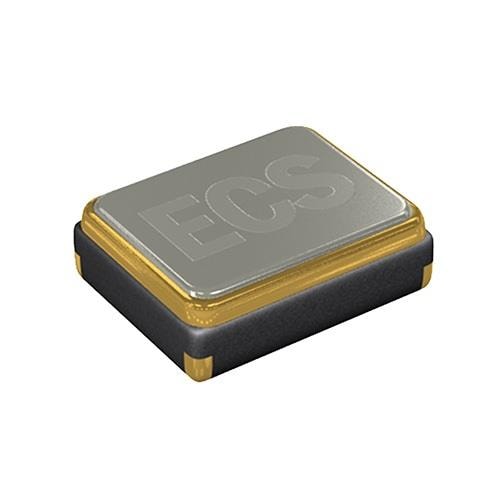

ECS Inc. International ECS-TXO-20CSMV4-520-AN-TR TCXO 52.000 MHz ECS-TXO-20CSMV MultiVolt TCXO Clipped Sine Wave 1.7 - 3.6 +/-0.5 ppm -40 - +85C 2.0 x 1.6 mm 4 Pad SMD

Width: 1.6 mm

Height: 0.8 mm

Length: 2 mm

Frequency: 52 MHz

Output Format: Sine Wave

Current Rating: 2 mA

Mounting Style: SMD/SMT

Load Capacitance: 10 pF

Termination Style: SMD/SMT

Frequency Stability: 0.5 PPM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.8 V, 2.5 V, 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
