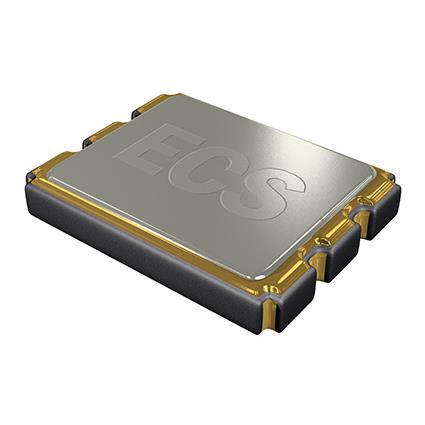

ECS Inc. International ECS-3225MVQ-500-CN-TR Standard Oscillators XO 50.000MHZ CMOS SMD ECS-3225MVQ XO 50MHz Enable/Disable CMOS 1.7 V - 3.6 V +/-25ppm -40C - 85C 5mA Surface Mount 4-SMD, No Lead 0.098" L x 0.079" W (2.50mm x 2.00mm) 0.035" (1.2mm),AECQ

Width: 2.5 mm (0.098 in)

Height: 1 mm (0.039 in)

Length: 3.2 mm (0.126 in)

Frequency: 50 MHz

Output Format: CMOS

Qualification: AEC-Q200

Mounting Style: SMD/SMT

Duty Cycle - Max: 55 %

Load Capacitance: 15 pF

Termination Style: SMD/SMT

Frequency Stability: 25 PPM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
