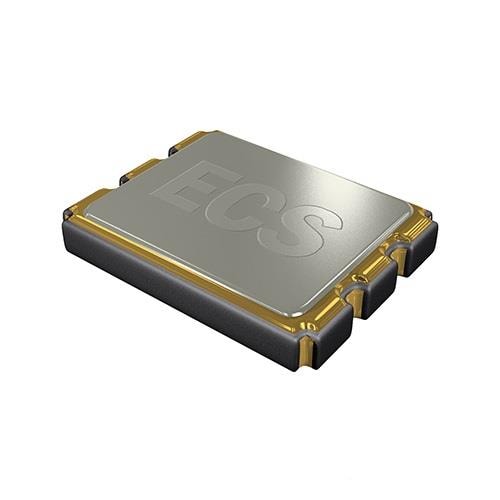

ECS Inc. International ECS-3225MV-491.52-CN-TR Standard Oscillators ECS-3225MV 49.152 MHz 3225 1.6 -3.6V +/-25 ppm -40 - +85C

Width: 2.5 mm (0.098 in)

Height: 1.2 mm (0.047 in)

Length: 3.2 mm (0.126 in)

Frequency: 49.152 MHz

Output Format: HCMOS

Current Rating: 5 mA

Duty Cycle - Max: 55 %

Load Capacitance: 15 pF

Termination Style: SMD/SMT

Frequency Stability: 25 PPM

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 1.62 V

Operating Supply Voltage: 1.8 V, 2.5 V, 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
