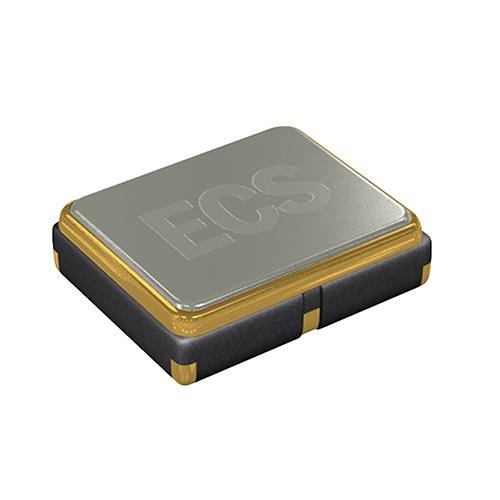

ECS Inc. International ECS-2520MVLC-250-BN-TR3 Standard Oscillators 25.000 MHz Multi-Volt 1.6 - 3.6V +/-50 ppm -40 - +85C 4-SMD 2.5x2.0mm Low Current RoHS

Width: 2 mm (0.079 in)

Height: 0.8 mm (0.031 in)

Length: 2.5 mm (0.098 in)

Frequency: 25 MHz

Output Format: CMOS

Duty Cycle - Max: 55 %

Load Capacitance: 15 pF

Termination Style: SMD/SMT

Frequency Stability: 50 PPM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Operating Supply Voltage: 2 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
