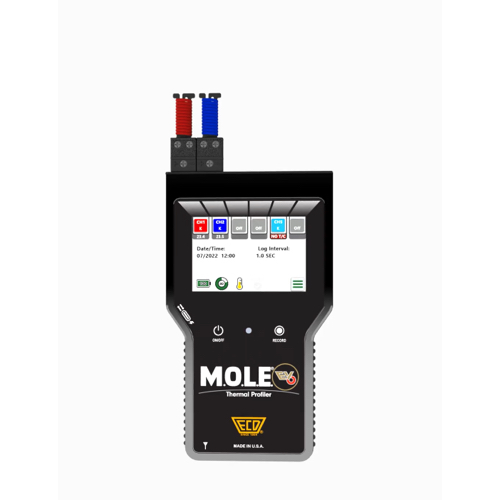

Display: PS TFT Display; 240 x 400 Dot Matrix
Thermocouple Sensors (Up To 6):
ECD Micro-Thermocouples: Type K*, T, J, E, N, R, S & B
%RH: ECD VaporWATCH® RH Sensor
Data Acquisition:
Sampling Interval: 100 samples/second to 10 minutes/sample
Data points: 16 million (2.6 million at 6 channels) or 200 data runs (whichever comes first)
Accuracy: +/- 0.5°C (0.9°F)
Resolution: 0.0056°C (0.01°F)*
Noise Rejection: 50-60 hrz*
Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)
Power:
Battery: Lipo (Lithium Polymer ion) – Rechargeable, 1100mAh
Physical:
Dimensions (L x W x H):
Profiler: 152.4mm (6”) x 89mm (3.5”) x 9.41mm (0.37”)
Barrier: 253.9mm (10.0”) x 104mm (4.1”) x 26.9mm (1.06”)
Yellow Jacket: 264.6mm (10.4”) x 115mm (4.53”) x 32.5 (1.28”)
Weight:
Profiler: 0.204 kg (7.2 oz)
Barrier: 0.861 kg (30.4 oz)
Yellow Jacket: 0.07 kg (2.4 oz)
Operational range (Profiler): -40°C to +80°C (-40°F to 176°F)
Humidity: 0-85% RH (Non Condensing)
Communications:
Interface: USB 2.0 Compliant (charge; upload; download)
Cable: USB Type A to USB-C, 1m (3’)
