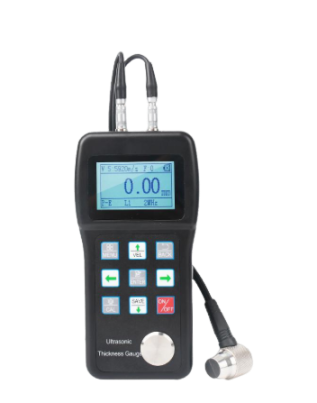

EBP UT-4 Coating Portable Ultrasonic Thickness Gauge ((0.75-600)mm(Steel), (Through Coating): 3-25mm)

Measuring range: (0.75-600)mm(Steel), Measuring Range (Through Coating): 3-25mm

Velocity Range: 1000-9999m/s

Resolution: 0.01mm

Measuring accuracy: ± (0.5%H+0.04mm); H is thickness value

Measurement cycle: Single point measurement 6 times/per

Calibration Function: Zero calibration and two-point calibration

Alarm: Sound-light alarm function

Lower limit for steel pipes

5MHz probe: 20mm*3.0mm (0.8 0.12 inch)

7MHz probe: 15mm*2.0mm (0.6 0.08 inch)

Display: 128 x 64 LCD with LED backlight, color screen

Storage: 40 values of saved data

Communication interface: USB

Language: English and Chinese

Power Source: 2pcs 1.5V AA battery

Working Time: more than 50 hours (LED backlight off)

Work environment: -20℃ to 50℃; Humidity ≤90％

Storage Temperature: -30℃ to ＋70℃

Dimensions & N/W: 145mmx74mmx32 mm; 245g

Standard Configuration

Main Body: 1 set

Standard Probe (5MHz,D10mm): 1 pc

Couplant: 1 pc

ABS Case: 1 pc

Product Certificate: 1 pc

Warranty Card: 1 pc

Manual: 1 pc

1.5V AA size: 2 pcs
