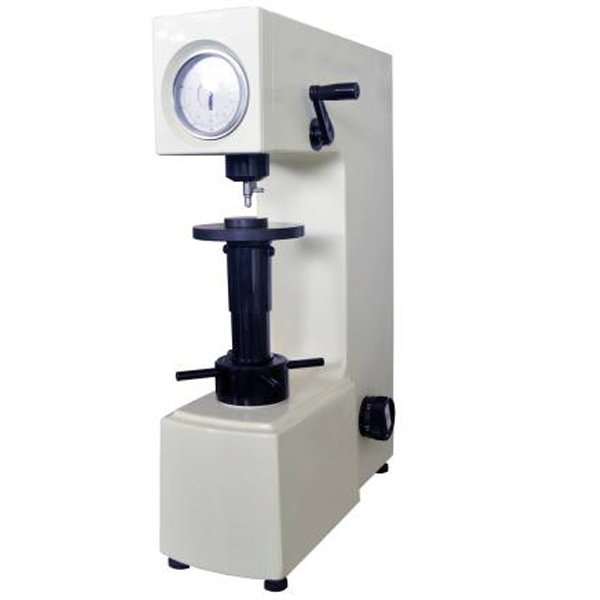

EBP RSR-45/150M Manual Rockwell & Superficial Rockwell Hardness Tester

Initial Test Force:3kgf (29.42N), 10kgf (98.07N)

Total Test Force:15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter:Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method:Manual

Hardness Reading:Dial

Resolution:0.5HR

Max. Height:175mm

Throat depth:165mm

Execute Standard:ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2

Dimension:520×255×700mm，Packing Dimension: 650×370×950mm

Weight:Net Weight: 80kg，Gross Weight: 100kg

Packing List:

Instrument Main Body1 set

Diamond Rockwell Indenter1 pc

ф1.588mmBall Indenter1 pc

Middle Plane Test Table1 pc

Large Plane Test Table1 pc

V-shaped Test Table1 pc

Hardness Block 60~70 HRC1 pc

Hardness Block 20~30 HRC1 pc

Hardness Block 80~100 HRB1 pc

Hardness Block 70~85 HR30T1 pc

Hardness Block 65~80 HR30N1 pc

Weight 1, 2, 3, 4, 55 pcs

Level1 pc

Horizontal Regulating Screw4 pcs

Inner Hexagon Spanner1 pc

Spanner1 pc

Anti-dust Cover1 pc

Usage Instruction Manual1 copy
