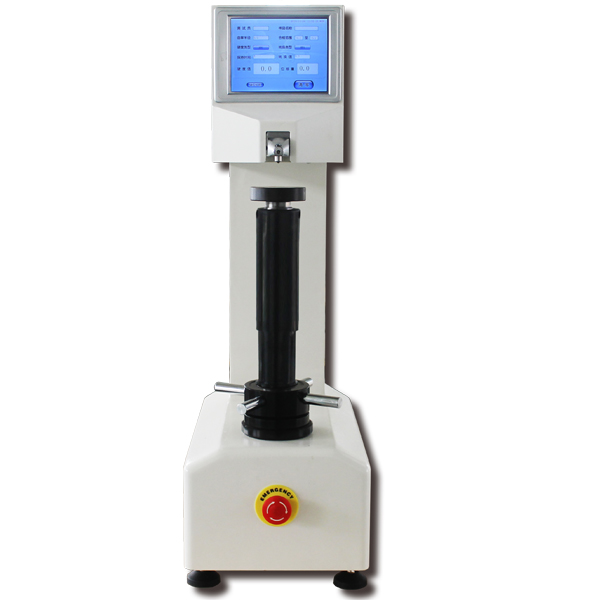

EBP RSR-150NT Nose Mounted Indenter Rockwell Hardness Tester

Test force: (error < 0.5%)60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N); Initial force: 10kgf (98N)

15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N); Initial force: 3kgf (29.4N)

Rockwell Scale:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Superficial Rockwell scale:15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y

Conversion scales:HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Rockwell Testing range:HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-115 HRR:114-125

Superficial Rockwell test range:HR15N: 70-94, HR30N: 42-86, HR45N: 20-77 HR15T: 67-93, HR30T: 29-82, HR45T: 10-72

Dwell time:0-99s

Display of Hardness Value:Touch LCD screen

Test accuracy:0.1HR

Executive standard:BSEN 6508, ISO 6508, ASTM E18, GB/T230

Data output:USB flash disk (Excel format)

Power supply:AC220±5%, 50-60Hz

Test space:Max. Height: 300mm; Throat depth: 250mm

Machine size:720*260*840mm

Net weight:80kg
