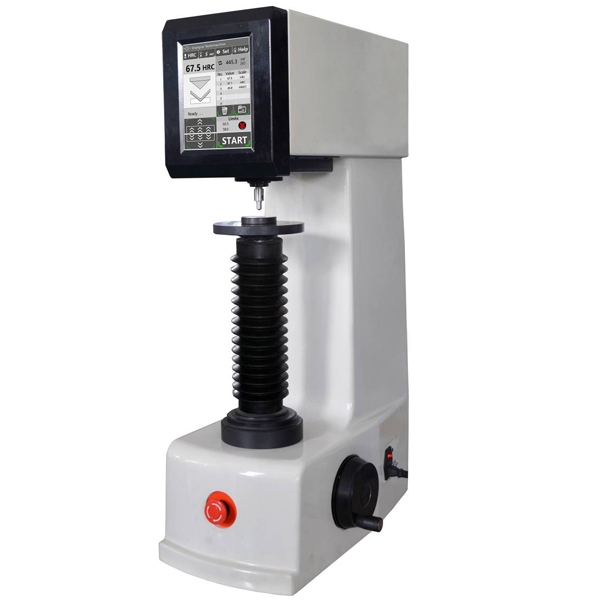

EBP RSR-150AT Fully Automatic Rockwell & Superficial Rockwell Hardness Tester

Initial Test Force:3kgf (29.42N), 10kgf (98.07N)

Total Test Force:15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter:Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method:Automatic (Loading/Dwell/Unloading)

Automatic Test Table:Automatic Rising and Homing, One Key to Complete

Hardness Reading:Touch Screen

Test Scale:HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion Scale:HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW

Data Output:RS232 Interface

Resolution:0.1HR

Dwell Time:0-99s

Test space:320*150mm (H*D)

Power Supply:AC220V, 50Hz

Execute Standard:ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2

Dimension:535×330×890mm, Packing Dimension: 820×460×1170mm

Weight:Net Weight: 80kg, Gross Weight: 100kg

Packing List:

Instrument Main Body1 set

Diamond Rockwell Indenter1 pc

ф1.588mmBall Indenter1 pc

Middle Plane Test Table1 pc

Large Plane Test Table1 pc

V-shaped Test Table1 pc

Screwdriver1 pc

Spanner1 pc

Hardness Block 60~70 HRC1 pc

Hardness Block 20~30 HRC1 pc

Hardness Block 80~100 HRB1 pc

Hardness Block70~85 HR30T1 pc

Power Cable1 pc

Anti-dust Cover1 pc

Usage Instruction Manual1 copy
