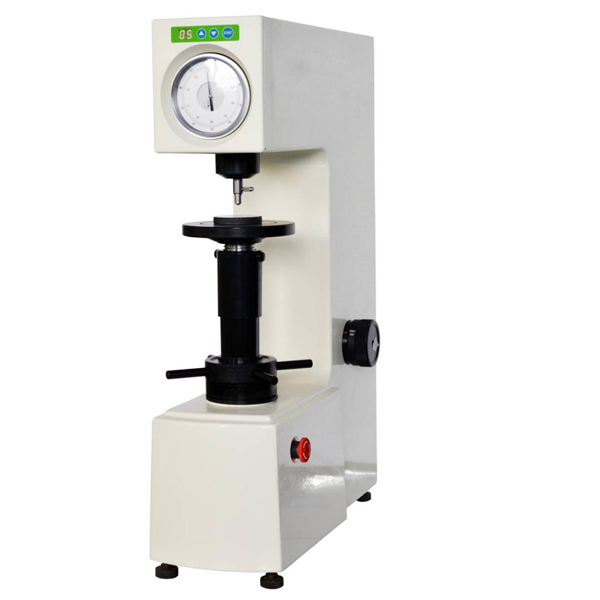

EBP R-150EP Electric Plastic Rockwell hardness tester

Rockwell scale:HRE, HRL, HRM

Preliminary test force:10Kg (98.07N)

Total test force:60Kg (588.4N), 100Kg (980.7N), 150Kg (1471N) Tolerance range:±1.0%

Indenter:Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter

Test force change:By change weights

Resolution:0.5HR

Hardness data read:Analog

Loading method:Driven by motor, button start

Test force duration:Fixed, 0-60 seconds

Test space:Maximum height :175mm Maximum throat depth:165mm

Size / weight:Instrument size: 520×215×700mm（L×W×H）/Net Weight: 78kg

Executive standard:ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.

Packing List:

Instrument Main Body1 set

Ф3.175mmBall Indenter1 pc

Ф6.35mmBall Indenter1 pc

Ф12.7mmBall Indenter1 pc

Middle Plane Test Table1 pc

Large Plane Test Table1 pc

V-shaped Test Table1 pc

Hardness Block 75~85 HRE1 pc

Hardness Block 110~120 HRL1 pc

Hardness Block 100~110 HRM1 pc

Hardness Block 115~125 HRR1 pc

Weight A, B, C3 pcs

Power Cable1 pc

Fuse 2A2 pcs

Level1 pc

Horizontal Regulating Screw

4 pcs

Screw Driver1 pc

Spanner1 pc

Anti-dust Cover1 pc

Usage Instruction Manual1 copy
