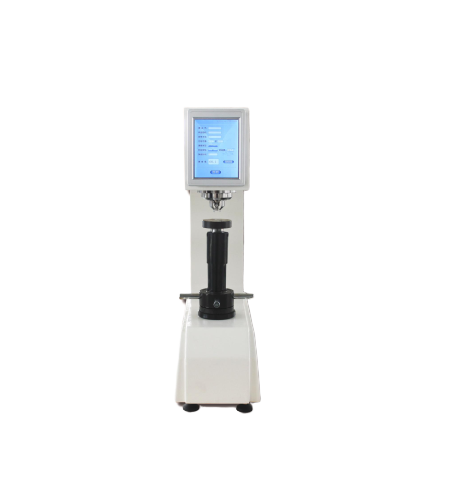

EBP R-150DT Advanced Touch Screen Digital Rockwell Hardness Tester

Initial Test force: 10kgf (98N)

Main Test force: 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter

Hardness scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Conversion scale: HRA, HRB, HRC, HRD, HRE, HRF, HV, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Dwell time: 0-99s

Load value error: ＜ 0.5%

Resolution: 0.1HR

Test space: 220*200mm (H*D)

Hardness reading: LCD display

Data output: USB flash disk in Excel format

Executive standard: BSEN 6508, ISO 6508, ASTM E18, GB/T230
