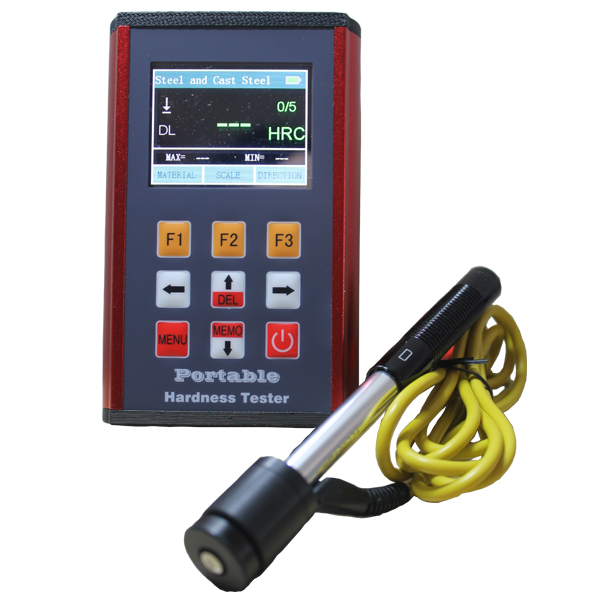

EBP L-4S Portable Leeb hardness tester

Measuring Materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel

Measuring Range: HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7)

Indication Error: ±6HLD (D impact device)

Measuring Direction: 360°

Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS

Display: 320x240 true color TFT screen

Data Memory: Max 600 groups (relative to impact times 1~32 adjustable)

Power: Rechargeable li-battery

Working Temperature: -20°C~55°C

Size: 152x76x33mm

Weight: 0.3kg

Packing list:

L-4S Host 1 PC

USB Cable 1 PC

Standard D Impact Device 1

PC PC Software 1 PC

Standard Calibration Block 1

PC User Manual 1 PC

Standard Support Ring 1 PC

Instrument Case 1 PC

Brush 1 PC
