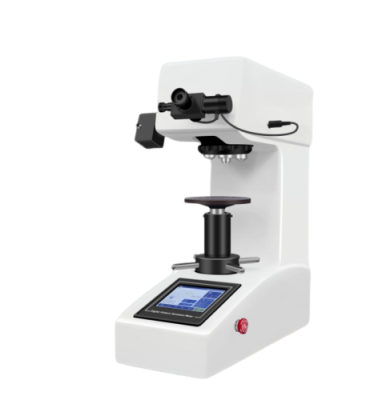

EBP HVT-30ADL Load Cell Automatic Turret Digital Vickers Hardness Tester (0.3kgf (2.94N) ~30kgf (294.0N))

Turret: Automatic (motorized switch)

Force loading: Automatic loading - dwell - unloading

Testing Force: 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20Kgf(196.0N), 30Kgf(294.0N)

Hardness Scale: HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30

Conversion Scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Min measuring unit: 0.125µm

Hardness range: 5-4000HV

Eyepiece: 10X digital eyepiece with built-in encoder, automatic calculate data

Objective: 10X, 20X

Magnification:

100X (measurement), 200X (measurement); Measuring range:400um

Both lens can do observe and measurement work directly

XY work table(optional purchase)

Dim.:100x100 mm, Max. Travel Range: 25x25mm,

Moving Resolution Ratio: 0.01mm

Dwell time: 1-99S (1 second per step)

Data output: 5.6’’ touch screen display, built-in printer

Test space: 175mm x 125mm (Height x Depth)

Power supply: AC220V， 50Hz

Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Overall Dimension: 320*580*620mm

Net weight: 71kg

Standard Accessories：

Large round test table 1

Medium size test table 1

10X digital eyepiece 1

V-shape test table 1

Vickers hardness block 2

Accessory case 1

10X objective lens 1

Spare Fuses (2A) 2

20X objective lens 1

Regulating Screw 4

Dust cover 1

Manual book 1
