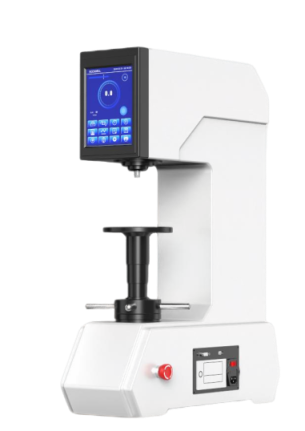

EBP HR-150DT Load Cell Base Digital Rockwell Hardness Tester (60kgf (588.4N) ~ 150kgf (1471N))

Initial Test Force: 10kgf (98.07N)

Total Test Force: 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter: Diamond Rockwell Indenter, ф1.588mm Ball Indenter

Loading Method: Automatic (Loading/Dwell/Unloading)

Hardness Reading: Touch Screen

Test Scale: HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Conversion Scale: HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW

Data Output: Built-in Printer

Resolution: 0.1HR

Dwell Time: 0-99s

Test space: 220mm x 165mm (Height x depth)

Power Supply: AC220V, 50Hz

Execute Standard: ISO 6508-2, ASTM E-18, JIS Z2245, GB/T 230.2-2018

Dimension: 690*490*885mm

Weight: 100kg

Packing List:

Instrument Main Body 1 set

Diamond Rockwell Indenter 1 pc

ф1.5875mmBall Indenter 1 pc

Middle Plane Test Table 1 pc

Large Plane Test Table 1 pc

V-shaped Test Table 1 pc

Inner Hexagon Spanner 1 pc

Spanner 1 pc

Hardness Block 3 pc

Fuse 2A 2 pcs

Power Cable 1 pc

Anti-dust Cover 1 pc
