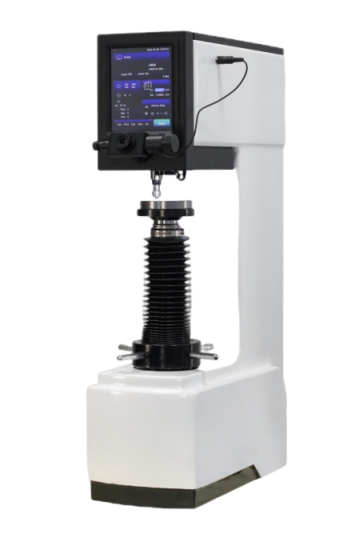

EBP HB-501 Advanced Automatic Turret Digital Brinell Hardness Tester (62.5kgf(612.9N) ~ 3000kgf(29420N))

Turret: Automatic turret

Brinell Scale:

HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW10/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Load Kgf(N): 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)

microscope magnification: 20X

Min measuring unit: 0.625µm

Dwell time: 1-99s

Hardness range: 8-650HBW

Data output: Touch screen display

Test space: 280*150mm (H*D) ; Optional: 280mm*170mm (H*D)

Power supply: AC220+5%,50~60Hz

Size & Weight: 600*230*920mm, 130kg

Executive Standard: ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2

Standard Accessories:

Measuring microscope 20X: 1

Diameter 2.5mm Hard alloy indenter: 1

Accessories box: 1

Diameter 5mm Hard alloy indenter: 1

Anti dust cover: 1

Diameter 10mm Hard alloy indenter: 1

V-type working table: 1

Medium working table Ø80mm: 1

Hardness block: 2

Large working table Ø240mm: 1

Manual book: 1
