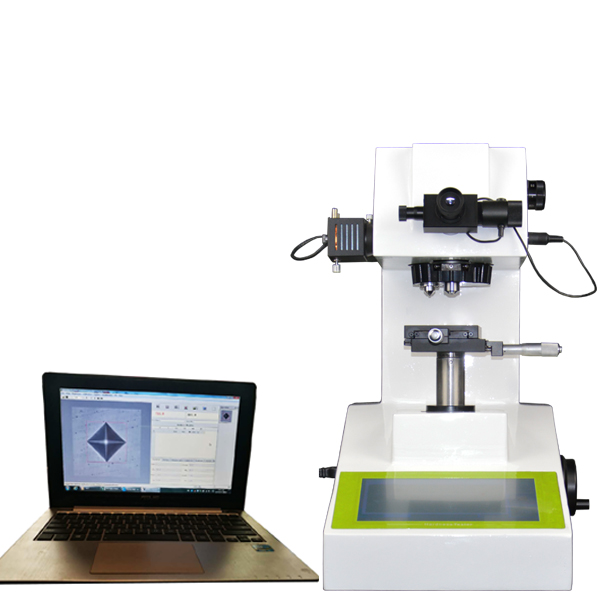

EBP DVS-1AT-10.2 Digital Micro Vickers Hardness Testing System

Hardness Scale:HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Conversion Scale:HRA, HRB, HRC, HBS, HBW, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK

Test force:

1. gf:10, 25, 50, 100, 200, 300, 500, 1000

2. N:0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8

Operation:

1. Focus:Manual focus

2. Loading:Automatic loading - dwell - unloading test force

3. Turret:Automatic turret

Magnification:10X Digital eyepiece; 10X, 40X Objective lens; Total magnification: 100X (observation), 400X (measuring)

Indenter:Standard Micro Vickers diamond indenter 136°±0.5°

Software:Auto measuring version, support all windows systems, win7, win10, etc Generate test report automatically in word / excel format, including hardness value, indentation depth, indentation image, conversion hardness, etc.

Camera:3.1M Pixel camera

Dwell time:1-99s (unit: 1 second)

Data display:10.2 inch digital touch screen; Computer screen

Data storage:With high-speed storage function, can store 600 sets of data

Data output:Built-in printer; USB interface (transfer data to USB flash); Software save data on computer

X-Y table:Size: 100x100mm; Max. Move range: 25x25mm

Light source:Halogen lamp (image more real and clear, light source strength is adjustable )

Allowed sample height (Max.)100mm

Throat depth:115mm

Power:220V + 5%, 50/60 Hz (110V is available)

Qualified judgment function:Enter Upper-lower limits, machine will automatic analysis of test results are qualified or not, and support to delete mistake operation test data at any time

Size:Machine size: 520*300*560mm; Packing size: 650*450*860mm (LxWxH)
