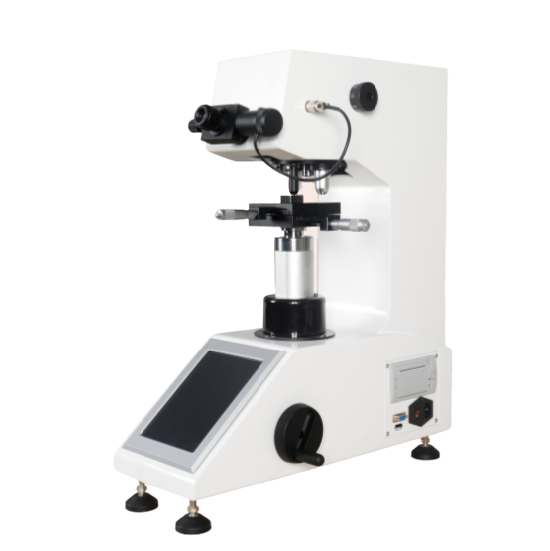

EBP DVK-1AT Advanced Double Indenter Digital Micro Vickers-Knoop Hardness Tester (10g-1000g; 8HV-2900HV)

Turret: Automatic Turret

Test mode: HV/HK

Testing force: 10g(0.098N), 25g(0.245N), 50g(0.49N), 100g(0.98N),

200g(1.96N), 300g(2.94N), 500g(4.9N), 1000g(9.8N)

Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Conversion scale: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T HV, HK, HBW

Test range: 8HV-2900HV

Loading method: Automatic (Loading/Dwell/Unloading)

Objective: 10X(measure); 40X(measure)

Eyepiece: 10X digital eyepiece with built-in encoder

Total magnification: 100X(measure); 400X(measure)

Hardness reading: 8" touchscreen, data can be saved

Loading speed: ≤50μm/sec

Min.measuring unit: 0.01μm

Duration time: 1-99s (each step is 1 second)

X-Y Testing table:

- Dim.:100×100mm

- Max.travel range: 25×25mm

- Moving resolution ratio: 0.01mm

Test space:

- Maximum height: 100mm (vertical)

- Throat depth: 130mm (horizontal)

Light source: LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours)

Machine size and N/W: 540*260*650mm; 50kg

Packing size and G/W: 710*420*627mm; 68kg

Power supply: 220V±5%, 50/60Hz (110V is available)

Standard Packing List:

Weights shaft x 1

Weights x 6

Diamond Vickers indenter x 1

Diamond Knoop indenter x 1

X-Y Cross clamping testing table x 1

Level adjustment screw x 4

Level bubble x 1

Objective 10X, 40X: 1+1

Micro Vickers hardness block x 2

Eyepiece 10X x 1

Dust-proof coverx  1

Screw driver x 2

Power cable x 1

Fuse (2A) x 2

Manual x 1

Product Certificate x 1
