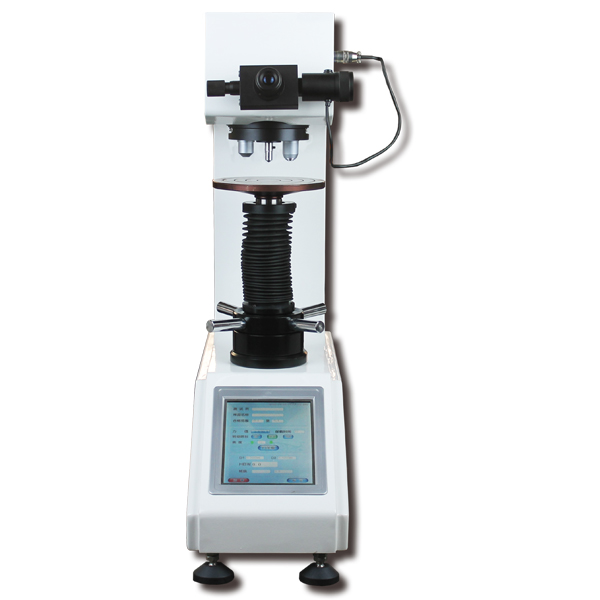

EBP DV-100AT HV100 Macro Vickers Hardness Tester (8-2900HV)

Min measuring unit:0.01µm

Load:1.0 Kgf (9.8N), 2.0Kgf(19.6N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20.0Kgf(196N), 30.0Kgf(294N), 50.0Kgf(490N), 60.0Kgf(588N), 100.0Kgf(980N)

Hardness conversion:HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Hardness range:8-2900HV

Force loading:Automatic loading - dwell - unloading

Turret:Automatic

Objective:Number: two pieces Standard: 10X, 20X Optional: 5X, 40X, 50X

Magnification:Standard: 100X, 200X Optional: 50X, 400X, 500X

Dwell time:0-99S (1 second per step)

Data output:Test data display on LCD screen, can save to U-flash in Excel format

Test space:180*160MM (H*D); 200mm height for optional

Power supply:AC220V+5%，50-60Hz

Standard:ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Overall Dimension:580*240*660mm

Net weight:About 50Kg
