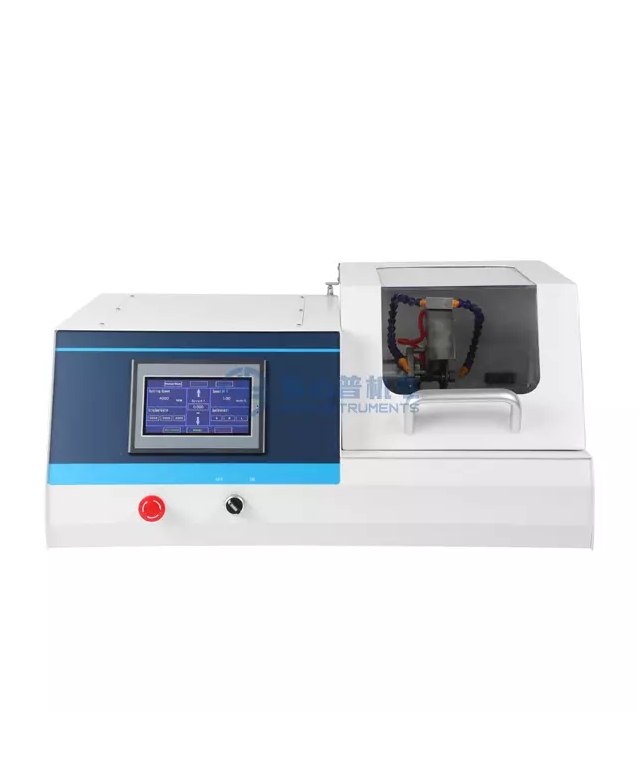

EBP CM-260Y Metallography Specimen Precision Cutting Machine Automatic (0-600mm/min, Φ200×1.0×Φ32mm)

Cutting method: Automatic spindle Y-feed (automatic return when cutting is complete), manual feed, pulse feed (automatic return when cutting is complete)

Feed speed: 0-600mm/min(Adjustment steps of 0.01mm)

Cutting wheel size: Φ200×1.0×Φ32mm

Spindle speed: 500-5000rpm

Y-axis travel: 260mm

Maximum cutting diameter: Φ60mm

Motor power: 1500W

Input power: Single Phase AC220V，50Hz

Display and control: Touch Screen

Cutting platform dimensions: 225x320mm

Cutting fixture: Quick Clamp

Size(WXDXH): 830×820×410mm

Transverse clamping width: 225mm

Longitudinal clamping length: 150mm

Net weight: 130KG

Standard Accessories:

CM-260Y cutting machine: 1

Cooling water box: 1

Wrench 13#-15#, 17#-19#: 2

Internal hexagonal wrench 6mm, 8mm: 2

Water inlet: 1

Drain-pipe: 1

Diamond Cutting wheel Φ200×1.0×Φ32mm: 2

Manual & Certificate: 1

CM-260Y high-speed precision cutting machine adopts touch screen and PLC control, with stable performance and real-time display of cutting parameters; Y-axis automatic feed cutting, with high positioning accuracy, large speed range and strong cutting capacity; the cutting chamber adopts a fully enclosed structure with transparent protective cover for observation during cutting; equipped with circulating cooling system, the surface of the cut specimen is bright and flat without burns; it is especially suitable for precision deformation-free cutting of metals, electronic components, ceramic materials, crystals, hard alloys, rock and ore, concrete, organic materials, biological materials (teeth, bone) and other materials, and is ideal for automatic precision cutting on the table.
