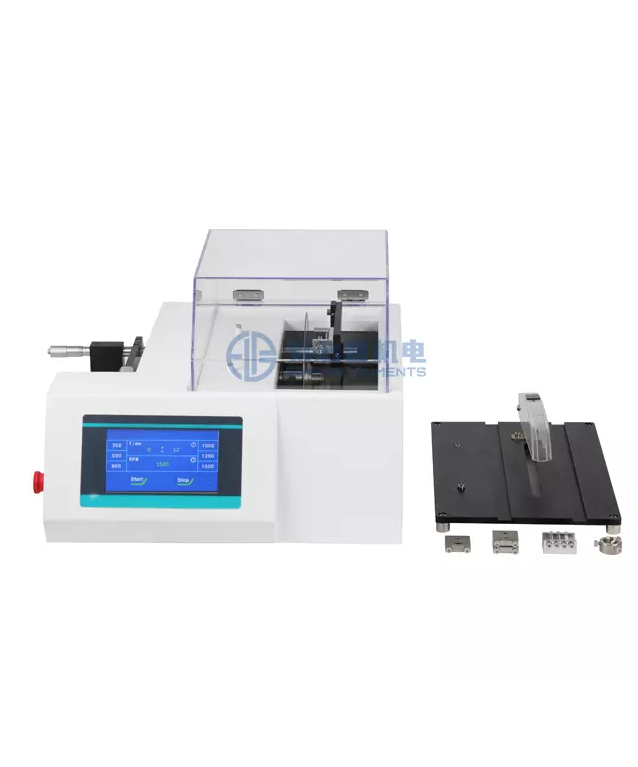

EBP CM-200T Metallographic Sample Precision Automatic Cutting Machine (200x0.9x32mm, 100-1500r/min)

Cutting wheel: 200x0.9x32mm

Micro meter head: Precision: 0.01mm; Travel range: 0-25mm

Cooling device: Automatic cycle cooling of cutting fluid (the cutting wheel drives the circulation of the water in the tank to cool down)

Motor: Power: 300W speed: 100-1500r/min

Loading weights: 0-450g

Display: 7’’ touch screen

Emergency brake: Emergency stop switch

Power supply: Single phase, AC220V, 50HZ

Size: 550 x 550 x 380 mm

Weight: 45kg

Accessories:

Diamond cutting wheel: 1 pc

Installation tools: 1 set

Precision meter head: 1 pc

Power cord: 1 pc

Sample jigs: 1 set

Manual: 1 pc

Flat clamp (optional): 1

CM-200T low speed precision cutting machine is suitable for cutting small, soft, brittle, special-shaped metal materials, composite materials, plastics, electronic components, biological materials, ceramics, cement, rocks and minerals, etc. It is also commonly used for thin-film sample preparation.
