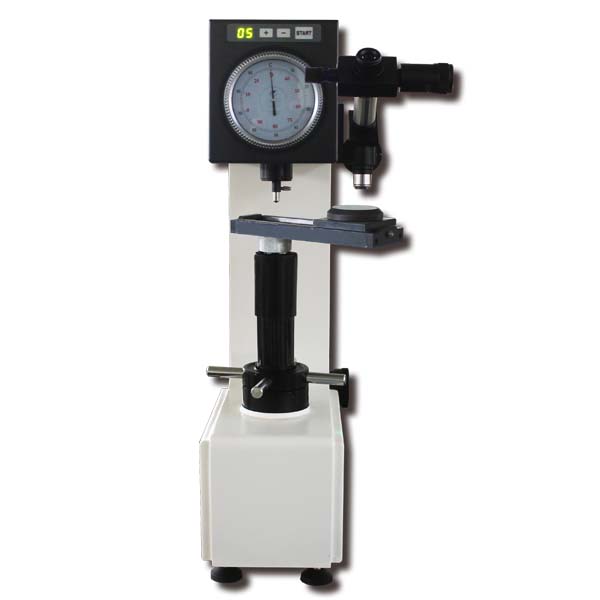

EBP BRV-187.5E Electric Brinell Rockwell & Vickers hardness tester

Rockwell Test Force:60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Brinell Test Force:30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)

Vickers Test Force:30kgf (294.2N), 100kgf (980.7N)

Indenter:Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter

Hardness Reading:Rockwell: Dial, Brinell & Vickers: Check Hardness Table

Magnification:Brinell: 37.5×, Vickers: 75×

Resolution:Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm

Dwell Time:2~60s

Max. Height of SpecimenRockwell: 175mm, Brinell: 100mm, Vickers: 115mm

Throat:165mm

Power Supply:AC220V，50Hz

Execute Standard:ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2 ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2 ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2

Dimension:520×240×700mm，Packing Dimension: 650×370×950mm

Weight:Net Weight: 80kg，Gross Weight: 105kg

Packing List:

Instrument Main Body1 set

Diamond Rockwell Indenter1 pc

Diamond Vickers Indenter1 pc

ф1.588mm, ф2.5mm, ф5mmBall Indentereach 1 pc

Slipped Test Table1 pc

Middle Plane Test Table1 pc

Large Plane Test Table1 pc

V-shaped Test Table1 pc

15× Digital Measuring Eyepiece1 pc

2.5×, 5× Objectiveeach 1 pc

Microscope System (include the inside light and outside light)1 set

Hardness Block 150~250 HBW 2.5/187.51 pc

Hardness Block 60~70 HRC1 pc

Hardness Block 20~30 HRC1 pc

Hardness Block 80~100 HRB1 pc

Hardness Block 700~800 HV301 pc

Weights 0, 1, 2, 3, 45 pcs

Power Cable1 pc

Fuse 2A2 pcs

Horizontal Regulating Screw4 pcs

Level1 pc

Spanner1 pc

Screw Driver1 pc

Anti-dust Cover1 pc

Usage Instruction Manual1 copy
