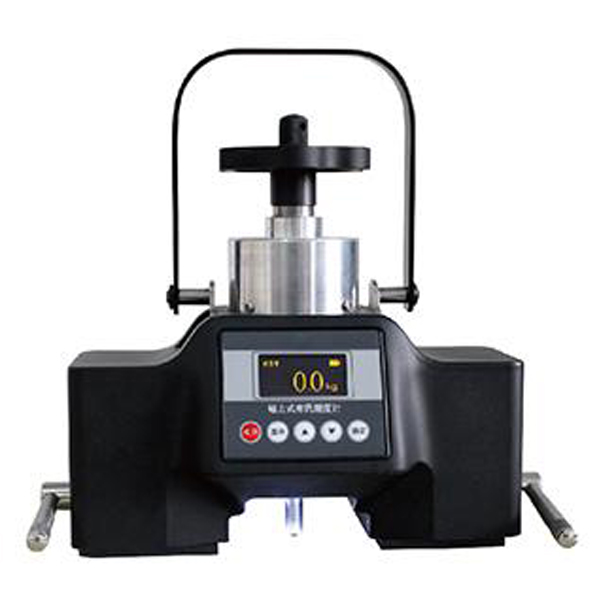

EBP BR-187.5DP Portable Rockwell & Brinell Hardness Tester

Initial test force:10kgf

Main test force:60kgf, 100kgf, 150kgf, 187.5kgf

Testing range:20~88HRA, 20~100 HRB, 20~70 HRC, 150~ 400 HBW

Indenter:120°diamond Rockwell indenter, hard alloy ball indenter:

Indication error:Complying with ISO6508 and ASTM

Repeatability error:Complying with ISO6508 and ASTM

Test Force Error:≤ ± 1%, Comply with ISO and ASTM standards

Test Resolution:0.1HR or 1HBW

Surface:

1. Flat: Area ≥195mm x 60mm, thickness≥5mm

2. Cylinder: Diameter≥50mm, length≥200mm, thickness≥8mm

Operating Temperature:0 ~ 50℃

Standard delivery:

1) BR-187.5DP Tester;

2) 120°diamond Rockwell indenter

3) hard alloy ball indenter

4) Rockwell hardness block; Brinell hardness block

5) Seat Iron

6) Recharger

7) Battery box

8) Carrying case
