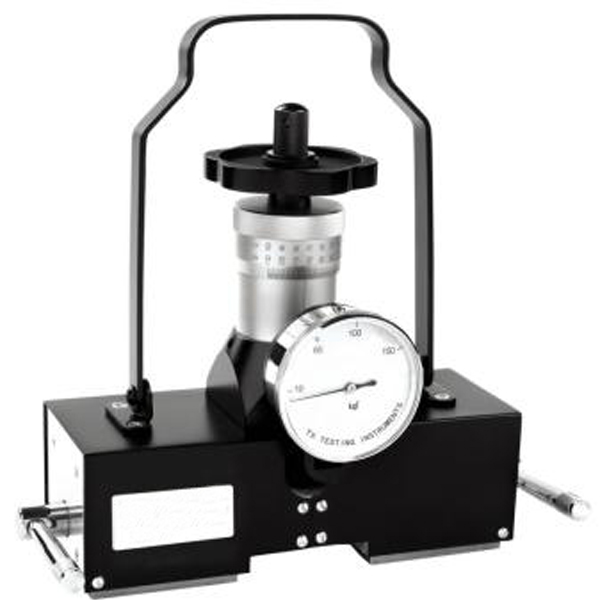

EBP PR-150M Portable Manual Rockwell Hardness Tester

Initial test force:10kgf

Main test force:60kgf, 100kgf, 150kgf

Indenter:120°diamond Rockwell indenter, φ1.588mm hard alloy ball indenter

Indication error:Complying with ISO6508 and ASTM E18

Repeatability error:Complying with ISO6508 and ASTM E18

Test Resolution:0.5HR

Weight:4.7kg

Surface:

1. Flat: Area ≥180mm x 60mm, thickness≥8mm

2. Cylinder: Diameter≥60mm, length≥200mm, thickness≥8mm

Standard delivery:

1) PR-150M Tester

2) 120°diamond Rockwell indenter

3) φ1.588mm hard alloy ball indenter

4) Rockwell hardness block

5) Adapter

6) Magnifier

7) Carrying case
