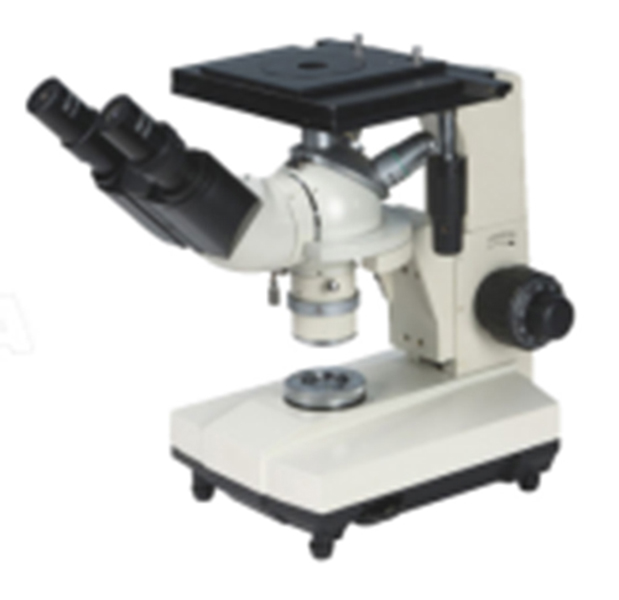

EBP E-100 Inverted Binocular Metallurgical Microscope

Eyepiece:WF10X/Ø18mm plan eyepiece

Objective:4X/0.10, 10X/0.25, 40X/0.65 (plan field, spring), 100X/1.25 (oil, spring)

Total magnification:40X, 100X, 400X, 1000X

Head:Hinge type 45 degree inclined binocular

Nosepiece / Turret:Four hole

Focus:Fine and coarse coaxial, with lock function, fine precision: 2um

Stage:Size: 200*180mm, moving range: 70*50mm Ø10 & Ø20 metal stage

Illumination:Pupil distance: 55-75mm 6V20W halogen bulb, brightness is adjustment With aperture diaphragm and centering field diaphragm

Filter:Blue, green, yellow

Operation Environment:

l Indoor

l Altitude: 2000m Max.

l Temperature: 5℃-40℃ (41℉-104℉)

l Humidity: 80% for 31℃ (88℉) 70% for 34℃ (93℉); 60% for 37℃ (99℉); 50% for 40℃ (104℉)

l Pollution: 2 (Refer to IEC664)

Weight:Net weight: 7kg; Gross weight: 8.5kg

Size:Machine size: 18X25X33cm; Packing size: 42X35X52cm
