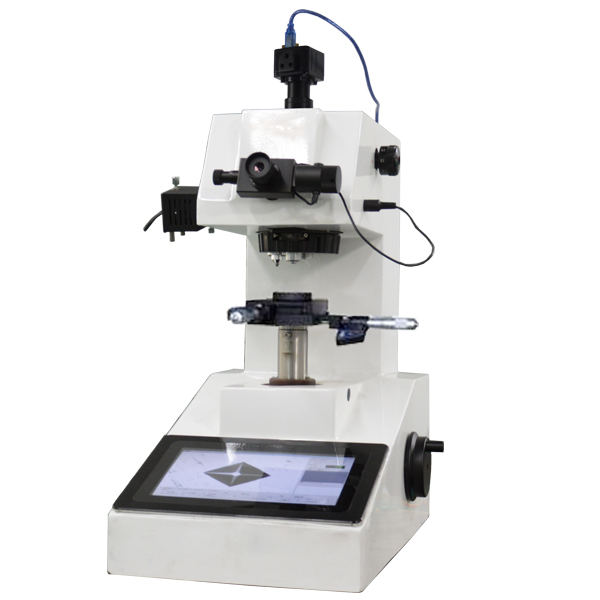

EBP DVS-1AT Intelligent Micro Vickers hardness tester

Hardness Scale:HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Conversion Scale:HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW

Operation system:Windows 7, CPU：Intel I, Memory: 4G，SSD: 60G

CCD camera:3 million pixels

Test force:

1. gf:10, 25, 50, 100, 200, 300, 500, 1000

2. N:0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8

Operation:

1. Focus:Manual focus

2. Loading:Automatic loading - dwell - unloading test force

3. Turret:Automatic turret

Magnification:10X Digital eyepiece; 10X, 40X Objective lens; Total magnification: 100X (observation), 400X (measuring)

Indenter:Standard Micro Vickers diamond indenter 136°±0.5°

Dwell time:1-99s (unit: 1 second)

Data display:10.1 inch digital touch screen (Indentation Displaying and Automatic Measuring on Touch Screen)

Data storage:With high-speed storage function, can store 600 sets of data

Data output:Word / Excel format report

X-Y table:Size: 100x100mm; Max. Move range: 25x25mm, resolution: 0.01mm

Light source:Halogen lamp (image more real and clear, light source strength is adjustable )

Test space:100x115mm (HxD)

Qualified judgment function:Enter Upper-lower limits, machine will automatic analysis of test results are qualified or not, and support to delete mistake operation test data at any time

Size:Machine size: 520*300*560mm; Packing size: 650*450*860mm (LxWxH)

Weight:Net weight: 52kg; Gross weight: 68kg

Delivery Packing List:

DVS-1AT machine body1 pc

Screw driver1 pc

Weights6 pc

Allen wrenches 1 set

Weights rod1 pc

Horizontal adjusting screw:4 pcs

X-Y test table1 pc

Power cable1 pc

Thin specimen fixture1 pc

10X digital eyepiece1 pc

Flat mouth fixture1 pc

Standard HV hardness block2 pcs

Drill head fixture1 pc

Fuse1 pc

Gradienter1 pc

Dust proof1 pc

CCD camera1 pc

USB data line1 pc

Quality certificate1 pc

Manual book1 pc
