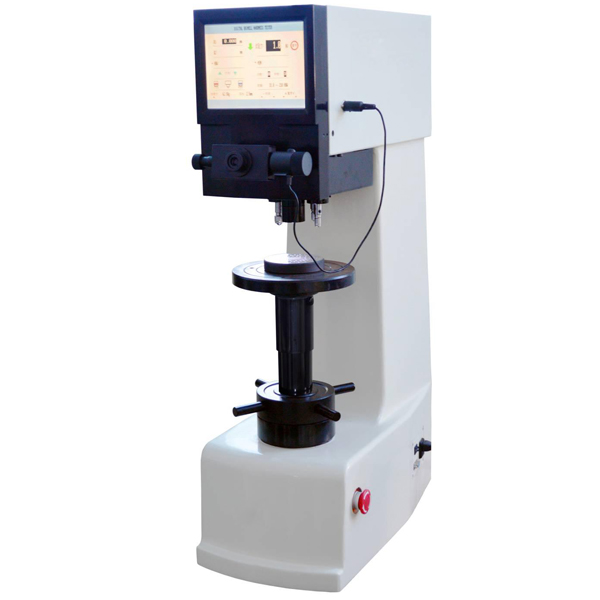

EBP B-3000DT-5 Three Indenters Digital Brinell Hardness Tester (3,18 ～ 653HBW)

Test Force

1. kgf:62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000

2. N:612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420

Test Range:3.18～653HBW

Loading Method:Automatic (Loading/Dwell/Unloading)

Hardness Reading:Touch Screen Display

Conversion Scale:HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS

Data Output:Built-in Printer, RS232 Interface

Shifting between Objective and IndenterAutomatic Recognition and Shifting (Three Indenters, Two Objectives)

Objective:1× ，2×

Eyepiece: 20×

Total Magnification:20× ，40×

Resolution:1.25μm ，0.625μm

Dwell Time:0~60s

Max. Height of Specimen:260mm

Throat:150mm

Power Supply:AC220V，50Hz

Execute Standard:ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2

Dimension:535×260×890mm，Packing Dimension: 820×460×1170mm

Weight:Net Weight: 150kg，Gross Weight: 180kg

Packing List:

Instrument Main Body1 set

20× Digital Measuring Eyepiece1 pc

1×, 2× Objectiveeach 1 pc

Ф2.5mm, Ф5mm, Ф10mm Ball Indentereach 1 pc

Small Plane Test Table1 pc

Large Plane Test Table1 pc

V-shaped Test Table1 pc

Power Cable1 pc

Hardness Block 150~250 HBW 10/30001 pc

Hardness Block 150~250 HBW 5/7501 pc

Fuse 2A2 pcs

Anti-dust Cover1 pc

Usage Instruction Manual1 copy
