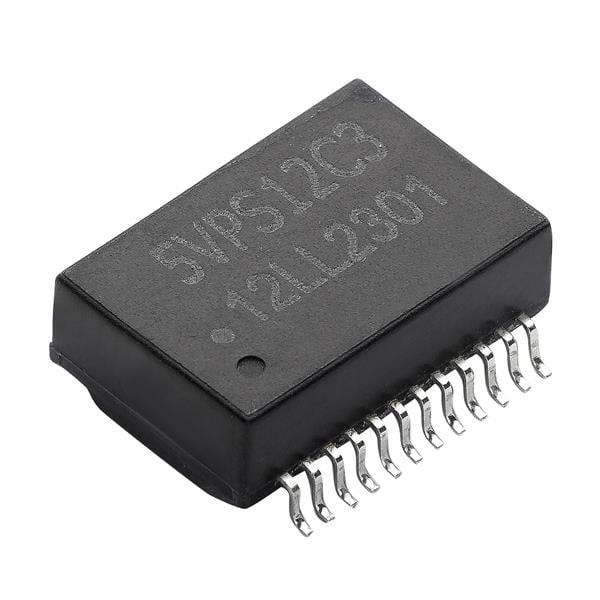

Eaton LAN5VSOPS24121C3 LAN Transformers LAN PoE Txfmr, 10G BASE-T, 120uH, Open Hdr, Single Port, 24 pins, 1500Vac
ManufacturerEaton(View more products from this manufacturer)
ModelLAN5VSOPS24121C3
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.2 mm
Height: 6.5 mm
Length: 18.13 mm
Inductance: 120 uH
Application: 10G Base-T
Core Material: Toroid
Current Rating: 13 mA
Isolation Voltage: 1.5 kVAC
Termination Style: SMD/SMT
Maximum DC Resistance: 1.4 Ohms
Operating Temperature Range: - 40 C to + 85 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
