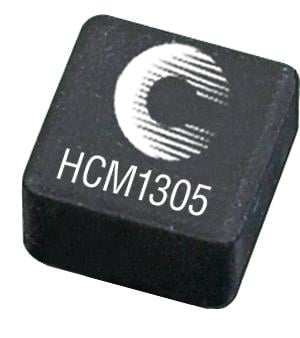

Eaton HCM1305-1R5-R High Power Choke 1.5uH 48A SMD HIGH CURRENT
ManufacturerEaton(View more products from this manufacturer)
ModelHCM1305-1R5-R
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.5 mm
Height: 5 mm
Length: 13.8 mm
Core Type: Wirewound
Shielding: Shielded
Tolerance: 20 %
Inductance: 1.5 uH
Application: High Current
Termination: Standard
Core Material: Iron Powder
Mounting Style: PCB Mount
Test Frequency: 5 MHz
Termination Style: SMD/SMT
Maximum DC Current: 23 A
Saturation Current: 48 A
Maximum DC Resistance: 3.16 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
