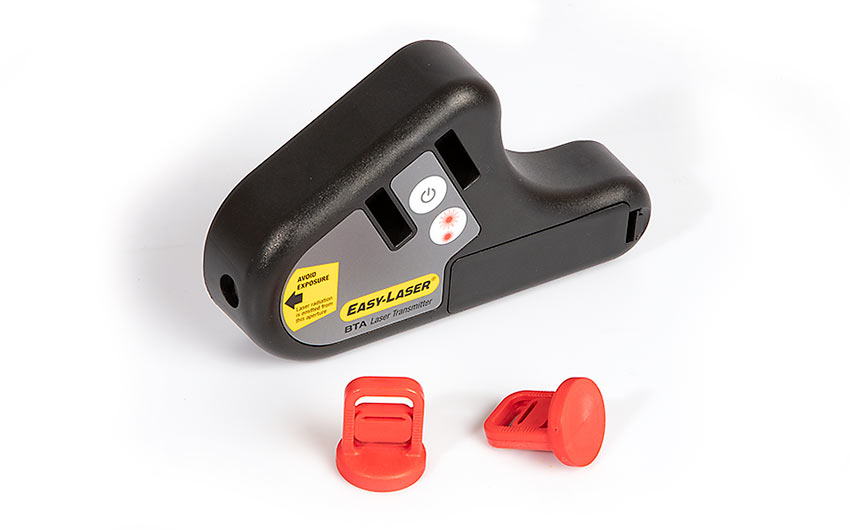

EASYLASER D92 - BTA Laser transmitter for belt alignment (≥ 60 mm, 40 mm ~ 3 m, 0.5 m ~ 10 m)

Sheave diameters: ≥ 60 mm [2.5"]

Measurement distance:

40 mm to 3 m (LOW power mode)

0.5 m to 10 m (HIGH power mode)

Laser class: 2

Output power (average):

< 0.6 mW (LOW power mode)

< 4.8 mW (HIGH power mode)

Laser wavelength: 635–670 nm

Beam angle: 60°

Accuracy – Laser plane vs. Reference plane:

Parallelity: < 0.05°

Offset: < 0.2 mm [0.008"]

Battery type: 1xR6 (AA) 1.5 V

Battery operation: Up to 12 h continuously

Material: ABS plastics / Hard anodized aluminium

Dimensions (W × H × D): 145 × 86 × 30 mm [5.7 × 3.4 × 1.2"]

Weight: 265 g [9.35 oz]
