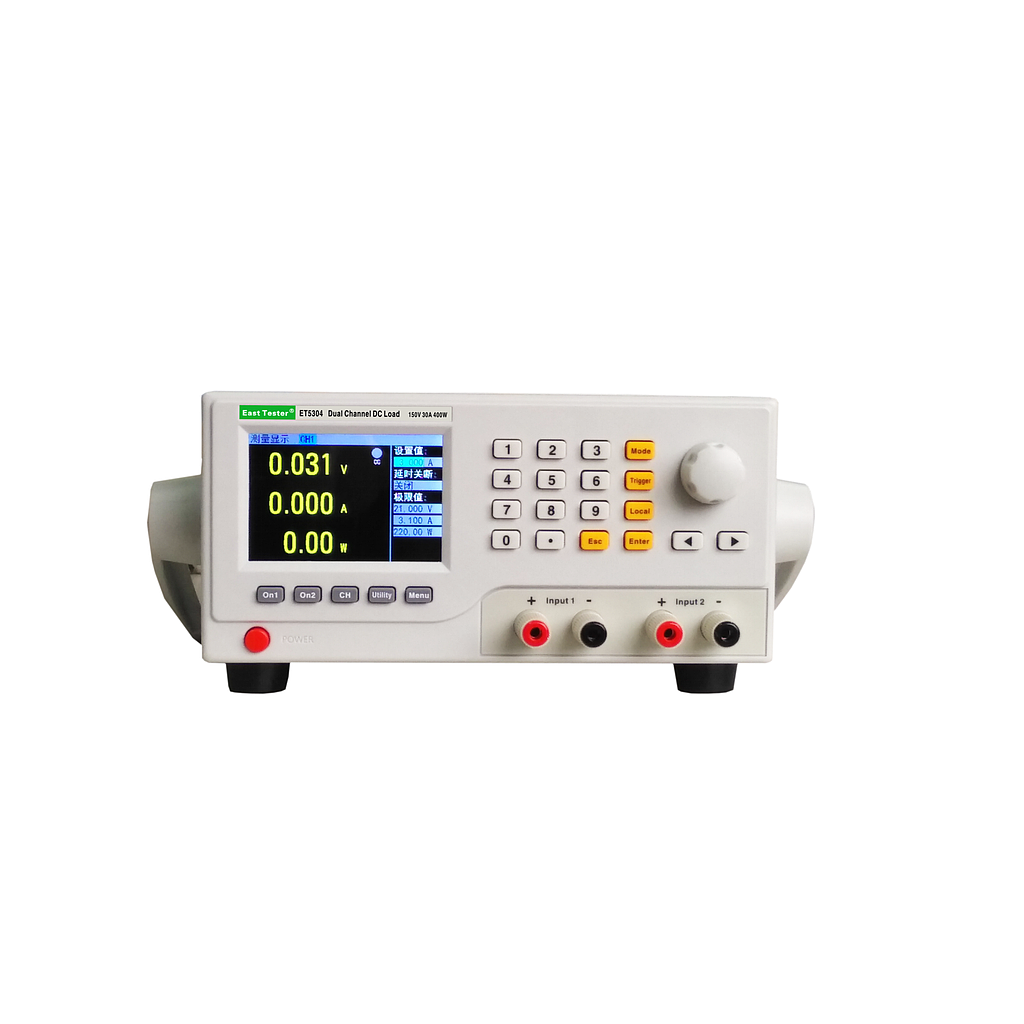

EAST TESTER ET5304 Programmable DC Electronic Load (400W; 150V; 60A)

Rated input

Power: 400W（200W*2）

Input voltage: 0-150V

Input current: 0-60A(30A*2)

CV mode: 0.1~19.999V，0.1~150.00V

CC mode: 0~3.000A，0~30.00A

CR mode: 0.05Ω~1 kΩ，1 kΩ~4.5kΩ

CP mode: 0~200W

Battery test

Accuracy: CC，CR

Discharge mode: 9999Ah

Maximum discharge capacity: 1mA，10mA，10mΩ，100mΩ

Measuring range:

Voltage readback: 0~19.999V,0 ~150.00V

Current readback: 0~3.000A,0~30.00A

Power readback: 200W

Scope of protection: OVP, OCP, OPP, Over-temperature protection

Power supply voltage: 220Vac±10%, 110Vac±10%, 45-65Hz

Display: 3.5-inch TFT LCD screen with resolution of 480×320

Operating temperature: 0℃ to 40℃

Storage temperature: -10℃ to 70℃

Relative humidity: < 80%

Interface: standard USB, RS232 or 485(optional)

Size: 320mm×220mm×100mm (width × height × depth

Standard accessories:

Three-core power cord 1

Power fuse 2

User manual 1

Optional accessories:

Light disk

USB cable

232 cable

Output wire

Datasheet
