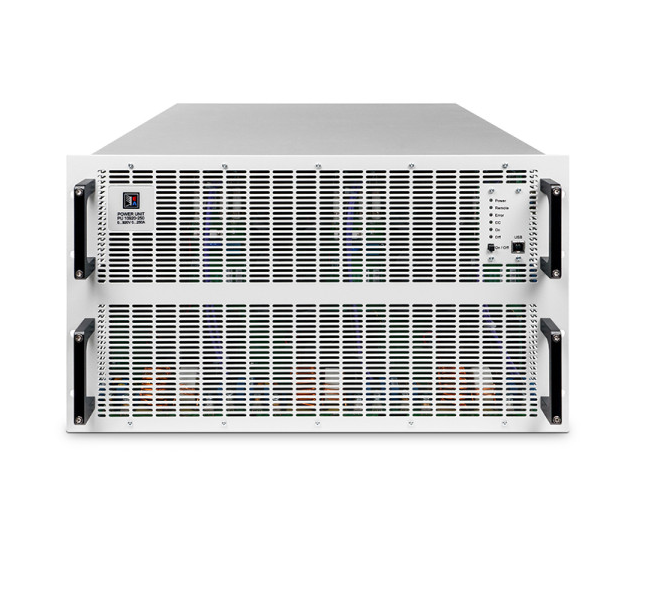

EA Elektro-Automatik PUB 10920-250 Programmable Bidirectional DC Power Supply (920V; 250A; 60000W)

DC output:

Voltage range : 0 - 920 V

Ripple in CV (rms) : ≤250 mV (BWL 300 kHz)

Ripple in CV (pp) : ≤1200 mV (BWL 20 MHz)

U Min for IMax (sink) : 2 V

Current range : 0 - 250 A

Power range : 0 - 60000 W

Resistance range : 0.125 Ω - 275 Ω

Output capacitance : 465 μF

Effi ciency sink/source (up to) : 96.5% *1

Insulation:

Negative DC pole <-> PE : ±1500 V DC

Positive DC pole <-> PE : +2000 V DC

*1 At 100% power and 100% output voltage; BWLL = band width limit
