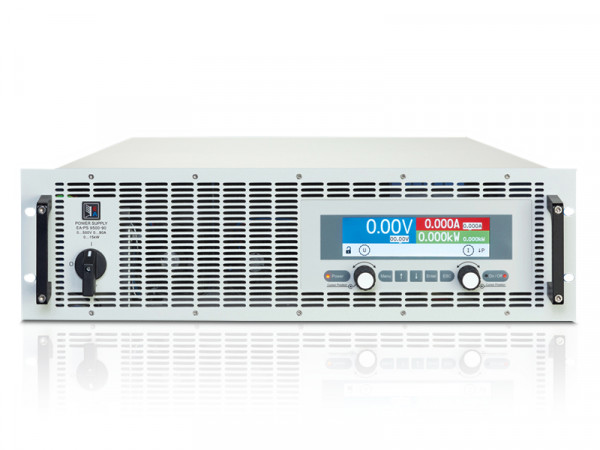

EA Elektro-Automatik PS 9500-90 3U Programmable High Efficiency DC Power Supply (208V model; 500V; 90A; 15000W)

Rated voltage & range : 0...500 V

Ripple (*1) : ≤350 mVPP / ≤70 mVRMS

Insulation (DC- to PE) : ±400 V

Insulation (DC+ to PE) : ±400 V

Rated current & range : 0...90 A

Rated power & range : 0...15000 W

Efficiency : ≈ 95%

Weight (*2) : ≈ 31 kg (68.3 lb)

AC: Supply

+ Voltage : 208V models: 188...229 V, 2ph/3ph

+ Frequency : 45...66 Hz

+ Power factor : >0.99

(*1) RMS value: measured at LF with BWL 300 kHz, PP value: measured at HF with BWL 20MHz

(*2) Weight of the standard version, models with options may vary
