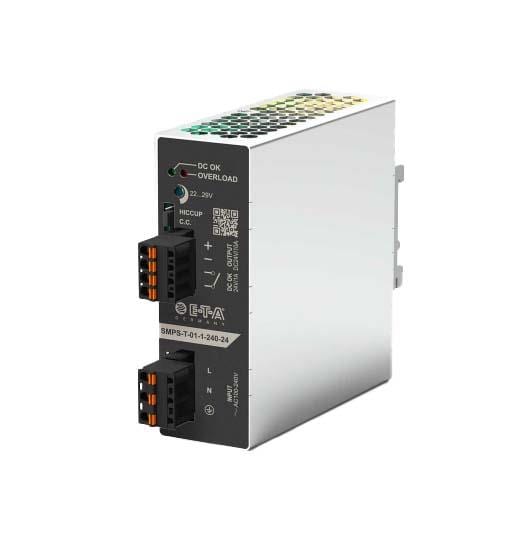

E-T-A Circuit Breakers SMPS-T-01-1-240-DC24V-10A Switch Mode Power Supply 1 phase power supply DC24V/10A, DIN rail mount, high efficiency, compact design

Width: 56 mm (2.205 in)

Height: 140 mm (5.512 in)

Length: 146.85 mm (5.781 in)

Industry: Industrial

IP Rating: IP20

Efficiency: 93 %

Output Power: 240 W

Input Voltage: 90 VAC to 264 VAC, 110 VDC to 345 VDC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
