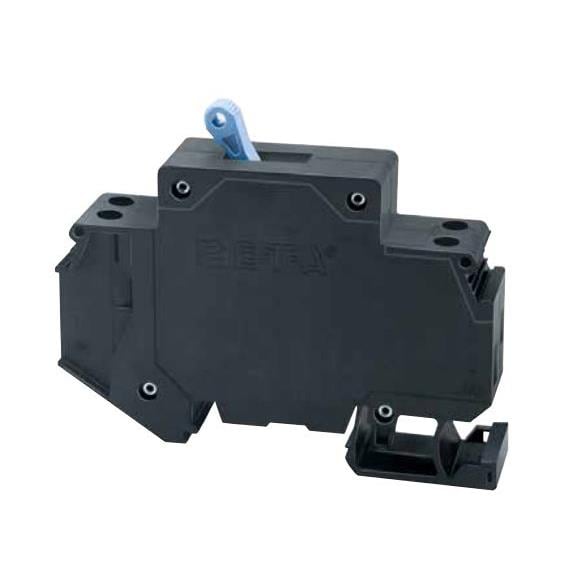

E-T-A Circuit Breakers 8340-T110-K1M1-AEH0-12A Hydraulic-Magnetic 1077, 1p, DIN, 80VDC Med Delay, 12A

Width: 19 mm

Height: 70.6 mm

Length: 89 mm

Compliance: CSA, CQC, UL, VDE

Illuminated: Non-Illuminated

Unit Weight: 98 g

Actuator Type: Toggle

Current Rating: 12 A

Mounting Style: Rail Mount

Voltage Rating: 80 V, 240 V, 415 V

Number of Poles: 1 Pole

Voltage Rating AC: 240 VAC, 415 VAC

Voltage Rating DC: 80 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
