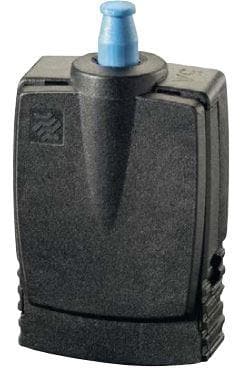

E-T-A Circuit Breakers 808-H-5A Magnetic Circuit Breakers Single pole miniaturised magnetic circuit breakers with unique high-speed operating mechanism and push/pull on/off manual actuation. Fitted with electrically separate excitation and switching circuits, and one pair of auxiliary contac

Width: 20 mm

Height: 10 mm

Length: 30 mm

Illuminated: Non-Illuminated

Actuator Type: Button

Current Rating: 5 A

Mounting Style: PCB Mount

Voltage Rating: 24 V

Number of Poles: 1 Pole

Termination Style: Solder Pin

Voltage Rating DC: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
