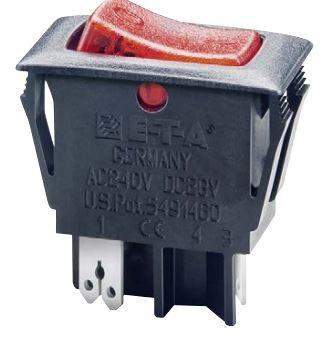

E-T-A Circuit Breakers 1410-F110-P1F1-W19QE2-2A Miniature Miniaturised single pole rocker switch/thermal circuit breaker combining ON/OFF switching and extremely fast overload performance in a single component (S-type TO CBE to EN 60934/IEC 934). Under overload conditions an internal neon (f

Width: 23.5 mm

Height: 12 mm

Length: 21.2 mm

Illuminated: Illuminated

Actuator Type: Rocker

Current Rating: 2 A

Mounting Style: Panel Mount

Voltage Rating: 28 VDC, 240 VAC

Number of Poles: 1 Pole

Termination Style: Blade

Voltage Rating AC: 240 VAC

Voltage Rating DC: 28 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
