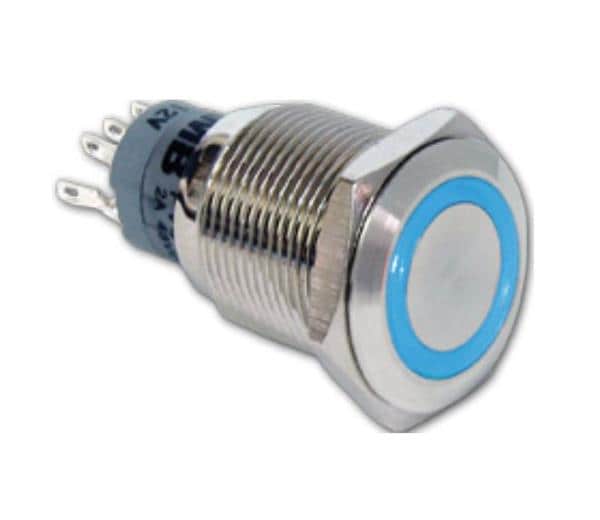

E-Switch PV3WF2B0SSG-341 Anti-Vandal ANTI-VANDAL, 2A 48VDC, SPDT On-(On), Panel Mount, Front Solder
ManufacturerE-Switch(View more products from this manufacturer)
ModelPV3WF2B0SSG-341
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 50000 Cycle
Actuator: Round, Flat
Diameter: 18 mm
Material: Brass
IP Rating: IP67
Lamp Type: LED
Illuminated: Illuminated
Unit Weight: 18.840 g
Contact Form: SPDT
Actuator Style: Button
Current Rating: 2 A
Mounting Style: Panel Mount
Contact Plating: Gold
Switch Function: ON - (ON)
Housing Material: Polycarbonate (PC)
Termination Style: Solder Lug
Voltage Rating DC: 48 VDC
Illumination Color: Blue
Flammability Rating: UL 94 V-2
Maximum Operating Temperature: + 55 C
Minimum Operating Temperature: - 20 C
