DYT DP-21 Handheld Thermal Camera (220x160, -10~450°C)

Thermal imaging

Detector resolution: 220x160

Spectral range: 8~14 μm

Frame rate:9Hz

NETD:70mK@25°C (77°C)

FOV:H 35°, V 26°

Lens4mm

Temperature range:-10°C ~ 450°C (14°F ~ 842°F)

Temperature measurement accuracy:±2°C or ±2%

Temperature measurement:Hottest, coldest, central point, zone area temperature measurement

Color palette:Tyrian, white hot, black hot, iron, rainbow, glory, Hottest, coldest

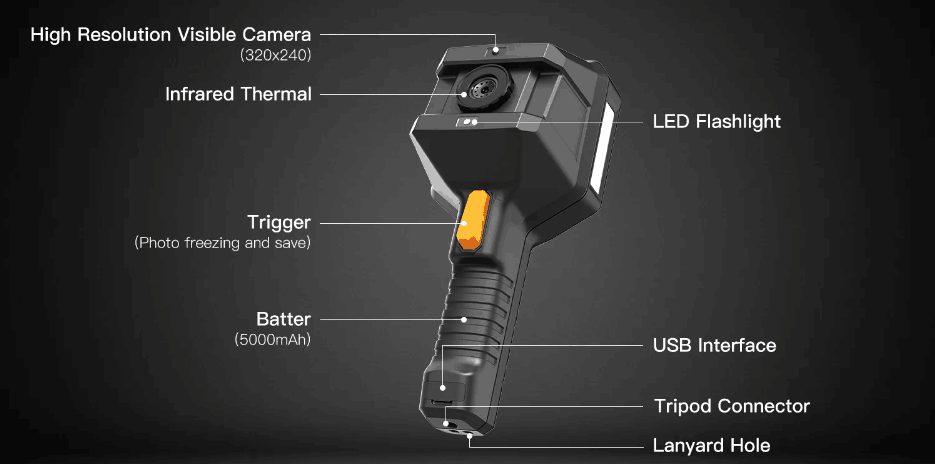

Visible light

Resolution:640×480

Frame rate:25Hz

LED light:Support

General

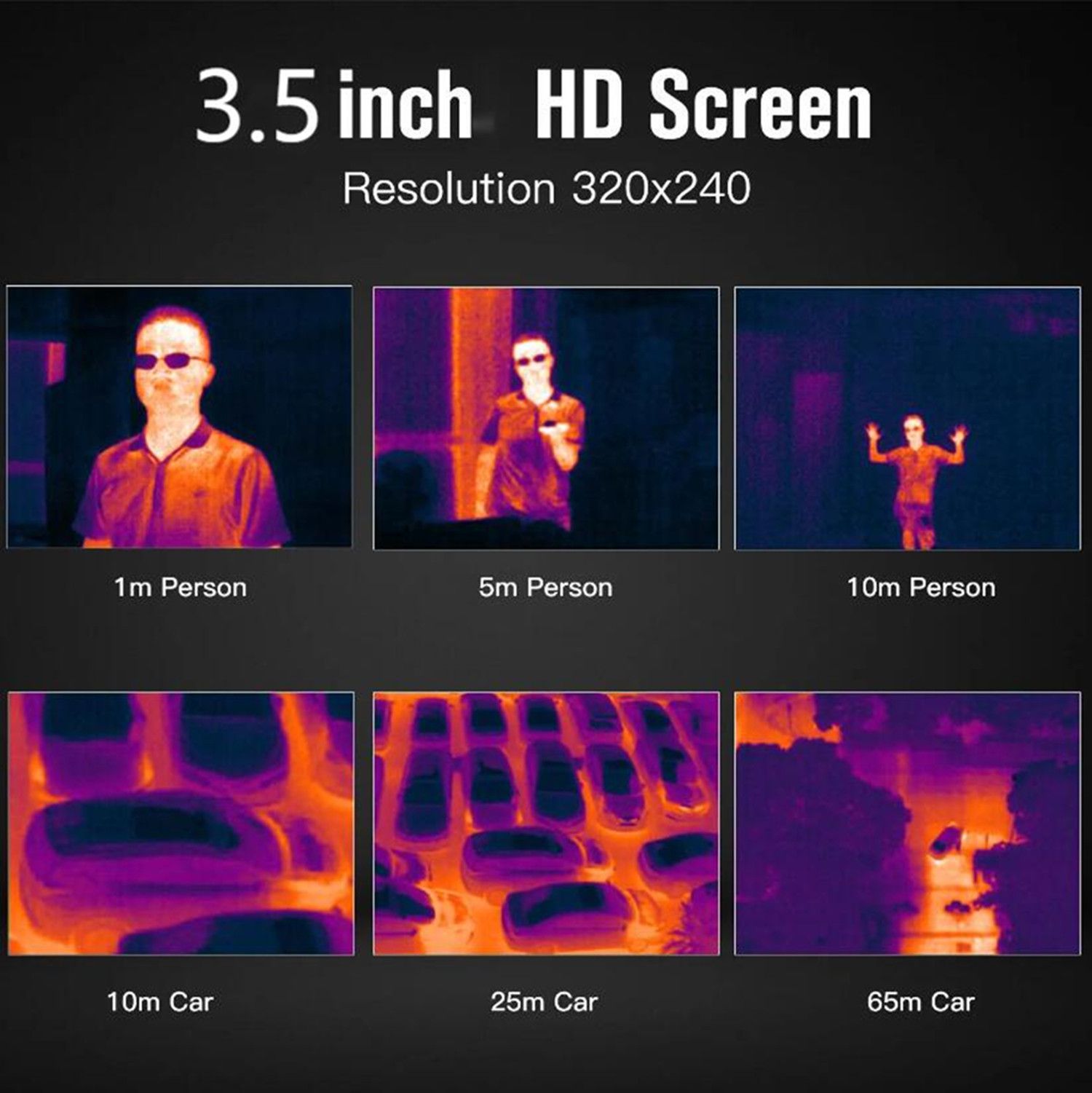

Display Resolution:320×240

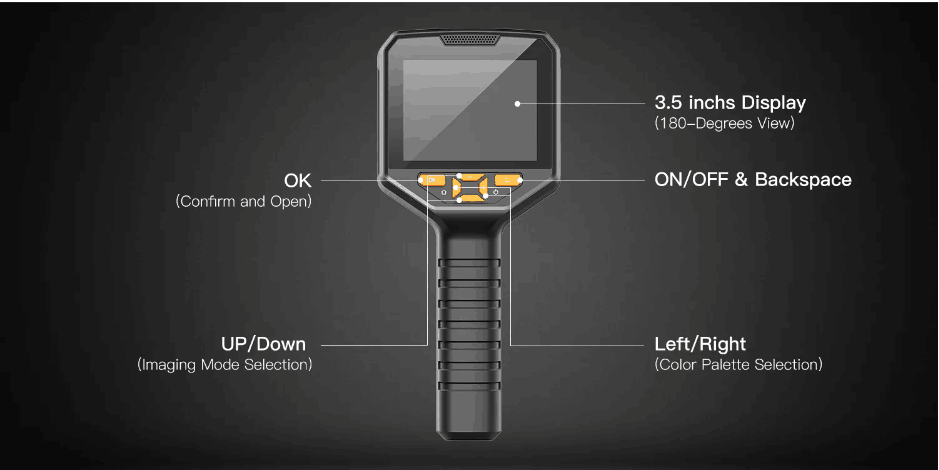

Display Size:3.5 inch

Image mode:Outline fusion, overlay fusion, picture-in-picture, infrared thermal imaging, visible light

Working time:4,800mah battery, up to 5 hours continuous use

Battery Charge:Built-in battery, it is recommended to use +5V & ≥2A universal USB charger

Wi-Fi:Support App and PC software data transmission

Operating temperature:-20°C~+60°C

Storage temperature:-40°C~+85°C

Waterproof and dustproof:IP54

Camera Dimension:230mm x 100mm x 90mm

Net weight:420g

Package dimension:270mm x 150mm x 120mm

Gross weight:970g

Storage

Capacity:Built-in 8G card, store more than 50,000 pictures

Picture storage mode:Save thermal, digital and blending images Simultaneously

File format:JPG and TIFF format, support full frame pictures temperature analysis

Image analysis

Windows system analysis software:Provide professional analysis functions of full pixels temperature

Interface

Data and charging interface:USB Type-C（Support battery charging and data transmission）

Secondary development

Open interface:Provide WiFi interface SDK for secondary development

Overview

DP Series Handheld Infrared Thermal Imaging Device is a high-precision thermal imaging handheld device. Due to its infrared thermal imaging and HD camera synchronous display, the product is able to detect the temperature of the target object and image, thereby rapidly detecting the fault state of the target object. It can be widely applied in mechanical equipment testing, automobile maintenance testing, air conditioning maintenance, power cruise, equipment temperature troubleshooting and other scenes.

Application

Night vision

Power line failure detection

Device defect detection

Printed circuit board troubleshooting

HVAC repair

Car repair

Pipeline leakage

Property management
