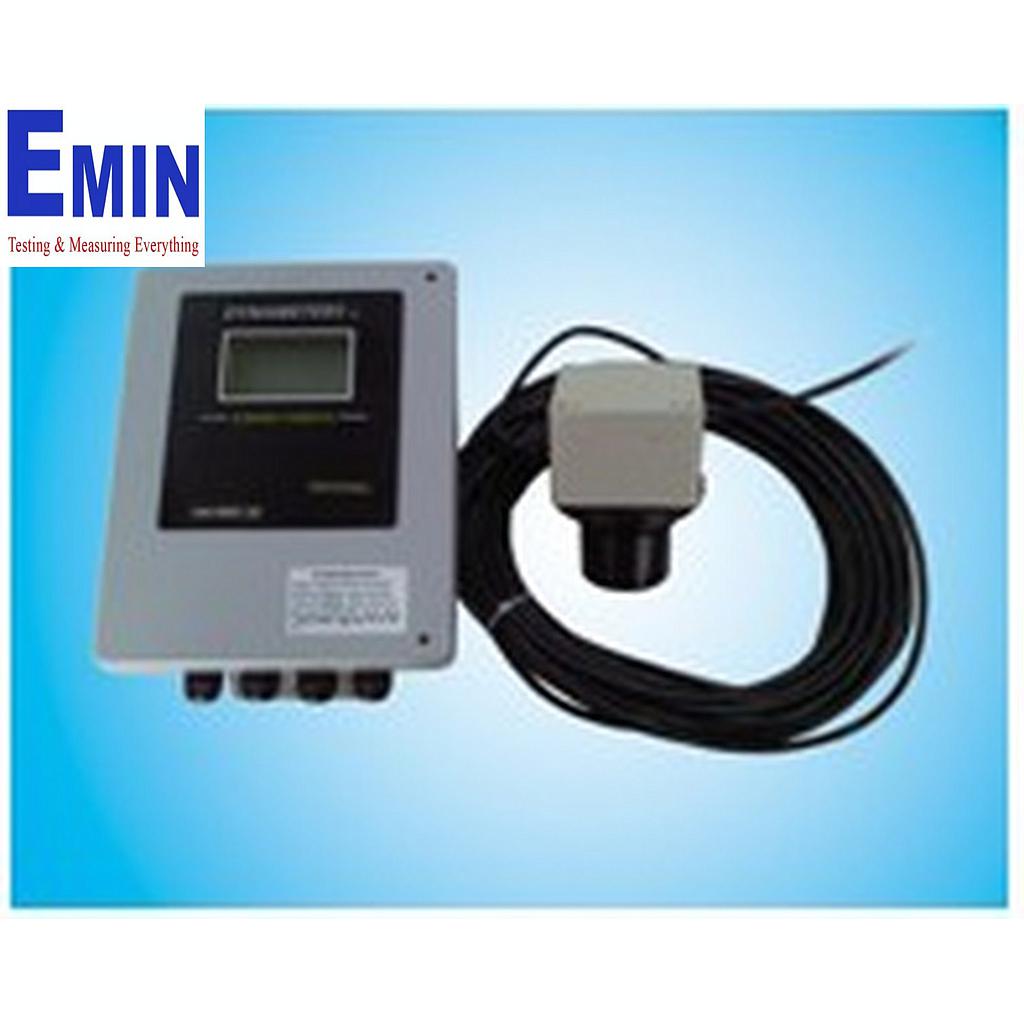

Dynaflox DMDF-OP-C Open Channel Ultrasonic Flow Meters

Manufacture: Dynaflox
Made in: China
Warranty : 12 months

Transmitter
Enclosure:
-Fixed: NEMA4x IP65, cast aluminum. 260L x 193 W x 80 H mm
-Portable : NEMA4x IP65, ABS. 358L x 250W x 150H mm
Power supply:
-Fixed: 85~264 VAC
-Portable: rechargeable built-in lithium battery, 12 VDC, 40h. Charger: 220VAC
Output: 4-20mA
Temp.: -40 + 70 C
Measuring range: 0.36 m3/h~3.6x10000 m3/h
Flow accuracy: 1%-5%

Level sensor
Measuring level : 0-3m
Level Accuracy: 0.3 %
Level dead band: 0.25m-0.5m
Level resolution:1mm
Ambient Temp: -20C~60C
Protection grade: IP67
Mounting mode: Mounting by frame or flange
Enclose: ABS
Remote distance: <50m

Selection table
